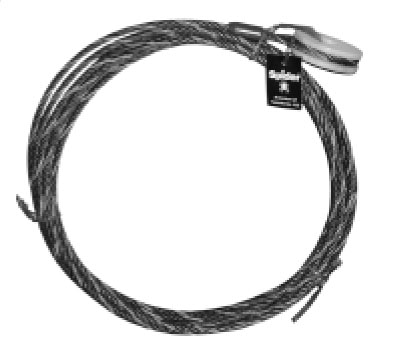

Wire Rope Assemblies
Spider carries a variety of finished wire rope assemblies for use with our SC1000 and UpPro Series hoists, as well as our Drum hoists. A range of lengths are available.
Note:
- For insulated wire rope assemblies, see Wire Rope Insulation & Welding Accessories.
- Spider does not recommend Fist Grips for suspension wire rope terminations for general use due to manufacturer’s more frequent inspection and specific torque requirements.
- Wire Rope Assembly specification subject to change.
Specifications
Part Number1 | Description | End Type | Breaking Strength |
700939-XXX | 5/16″ Wire Rope Assembly w/Thimble | Bulleted | 11,500 lb (5,216 kg) |
701118-XXX | 5/16″ Wire Rope Assembly w/ Insulated Thimble | Bulleted | 10,540 lb (4,781 kg) |
700018-XXX | 8.4mm Wire Rope Assembly w/Thimble | Bulleted | 12,500 lb (5,700 kg) |
701450-XXX | 8.4mm Wire Rope Assembly w/Thimble | Bulleted | 11,570 lb (5,248 k) |
Specifications
Part Number1 | Description | End Type | Breaking Strength | Model |
---|---|---|---|---|
720438-XXX | 3/8″ Wire Rope Assembly w/ Thimble | Bulleted | 15,100 lb (6,849.2 kg) | P1009 |
721084-XXX | 10.2mm Wire Rope Assembly w/ Thimble | Bulleted | 22,400 lb (10,160.5 kg) | P1010 |
721425-XXX | 14mm Wire Rope Asssembly w/Thimble | Bulleted | 50,413 lb (22,867 kg) | P2514 & P2314 |
Specifications
Part Number1 | Description | End Type | Breaking Strength |
---|---|---|---|
1329-XXX | 5/16″ Wire Rope Assembly w/Thimble | Drum Hook | 11,500 lb (5,216 kg) |
4405-XXX | 5/16″ Wire Rope Assembly w/Thimble | Drum Hook | 10,540 lb (4,781 kg) |
701990-XXX | 5/16″ Wire Rope Assembly w/18″ Eye | Drum Hook | 11,500 lb (5,216 kg) |
4863-XXX2 | 8.4mm Wire Rope Assembly w/Thimble | Drum Hook | 12,500 lb (5,700 kg) |
701447-XXX | 8.4mm Wire Rope Assembly w/Thimble | Drum Hook | 11,570 lb (5,248 kg) |
4775-XXX | 3/8″ Wire Rope Assembly w/ Thimble | Drum Hook | 15,100 lb (6,849 kg) |
2-XXX denotes length: 200 to 750 ft in 50 ft increments (e.g., 4863-350 for 350 ft).
