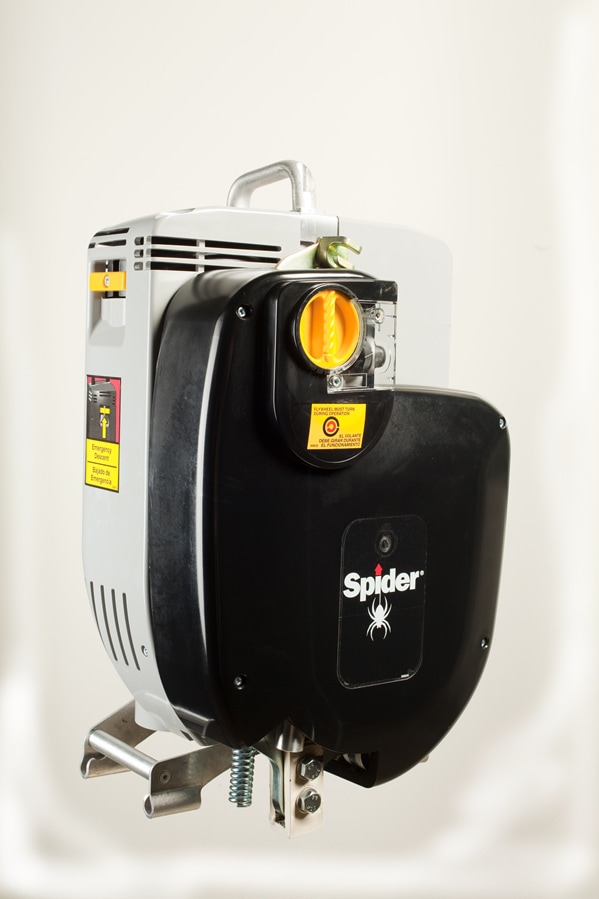

SC1000 Electric Series Traction Hoists
Spider’s SC1000 series hoists are the market leader. Contractors made the SC1000 & SC1500 their hoist of choice because these hoists make them more productive. Simply put – robust performance, industry leading durability and proven lower total cost of ownership offer the best lifetime value for fleet owners or rental operators.
The SC1000 Series Traction Hoists feature a gross load capacity of up to 1,000 lb or 1,500 lb and an operating range of 208V +10%/-15%, Single Phase or +10%/-10% Three Phase.
Specifications
| Part Number | Gross Load Capacity | Phase | Overspeed Brake | Overload1 | Slack Wire Rope Brake | Top Limit | Weight |
|---|---|---|---|---|---|---|---|
| 9005 | 1,000 lb (453.6 kg) | 1 |  | 101 lb (45.8 kg) | |||
| 9006 | 1,000 lb (453.6 kg) | 1 | | | 105 lb (47.6 kg) | ||
| 9007 | 1,000 lb (453.6 kg) | 1 | | | | | 108 lb (49 kg) |
| 9008 | 1,000 lb (453.6 kg) | 1 | | | 103 lb (46.7 kg) | ||
| 9009 | 1,000 lb (453.6 kg) | 1 | | | | 107 lb (48.5 kg) |
Additional Specifications
- Voltage: Single Phase: 208 V +10%/-15%

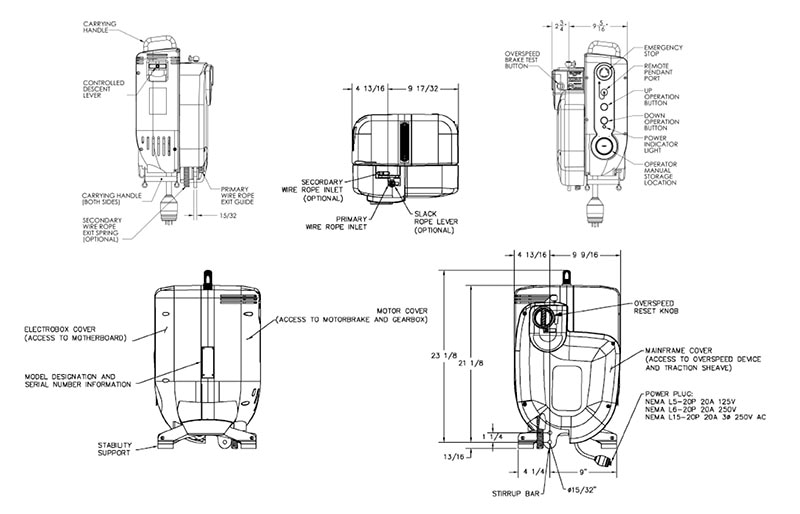

- Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
- Travel Speed: 35 ft/min (10.7 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright
Note: The SC1500 hoist is not approved for use in Canada due to the 10:1 wire rope safety factor required. If you need a 1,500 lb capacity hoist and are located in Canada, please contact Spider for assistance.
| Part Number | Gross Load Capacity | Phase | Overspeed Brake | Overload | Slack Wire Rope Brake | Top Limit | Weight |
|---|---|---|---|---|---|---|---|
| 9015 | 1,500 lb (680.4 kg) | 1 | | 104 lb (47.2 kg) | |||
| 9016 | 1,500 lb (680.4 kg) | 1 | | | 108 lb (49 kg) | ||
| 9017 | 1,500 lb (680.4 kg) | 1 | | | | | 111 lb (50.3 kg) |
| 9018 | 1,500 lb (680.4 kg) | 1 | | | 106 lb (48.1 kg) | ||
| 9019 | 1,500 lb (680.4 kg) | 1 | | | | 110 lb (49.9 kg) | |
| 9035 | 1,500 lb (680.4 kg) | 3 | | 105 lb (47.6 kg) | |||
| 9036 | 1,500 lb (680.4 kg) | 3 | | | 109 lb (49.4 kg) | ||
| 9037 | 1,500 lb (680.4 kg) | 3 | | | | | 112 lb (50.8 kg) |
| 9038 | 1,500 lb (680.4 kg) | 3 | | | 107 lb (48.5 kg) | ||
| 9039 | 1,500 lb (680.4 kg) | 3 | | | | 111 lb (50.3 kg) |
Additional Specifications
- Voltage:
- Single Phase: 208 V +10%/-15%
- Three Phase: 208 V +10%/-10%
- Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
- Travel Speed: 35 ft/min (10.7 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright

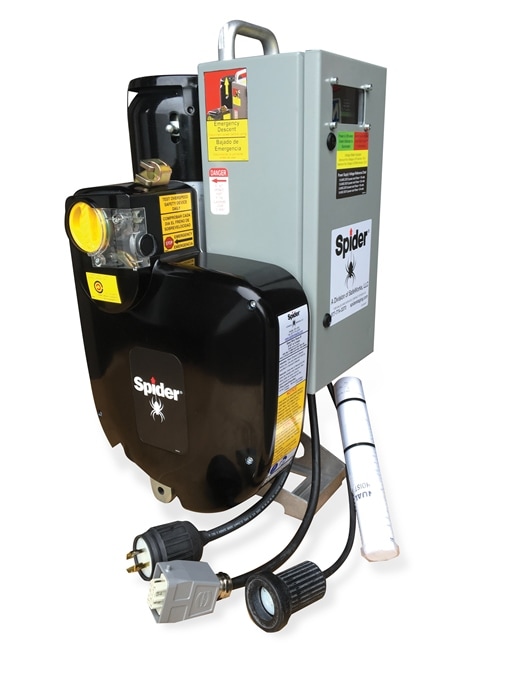

Spider’s SC1500 GHS is the first UL-listed, personnel-rated, high speed traction hoist on the market, significantly increasing your productivity and safety on Guided High Speed (GHS) applications with speeds up to 70 fpm.
For additional products and information related specifically to the elevator industry, please visit our Elevator Installation & Modernization applications page.
Note:
- The SC1500 hoist is not approved for use in Canada due to the 10:1 wire rope safety factor required. If you need a 1,500 lb capacity hoist and are located in Canada, please contact Spider for assistance.
- Due to regulatory requirements these hoists can only be used in elevator installation applications.
| Part Number | Gross Load Capacity | Phase | Overspeed Brake | Overload | Slack Wire Rope Brake | Top Limit | Type of Remote Included1 |
|---|---|---|---|---|---|---|---|
| 720459-2 | 1,500 lb (680.4 kg) | 1 | | N/A | | N/A | Sold Separately |
| 721057-1 | 1,500 lb (680.4 kg) | 1 | | N/A | | N/A | 1-Handed Remote |
| 721057-2 | 1,500 lb (680.4 kg) | 1 | | N/A | | N/A | 2-Handed Remote |
Additional Specifications
- Run Voltage Range: 195-230 V
- Weight: 153 lb (69.4 kg)
- Travel Speed: 70 ft/min (21.3 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19 IWRC or FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright
- Easily visible, continuous voltage readouts from on-board voltage meter.
For building owners that need hoists specifically for the permanent equipment industry, the following hoists are available for operation with a central control box (CCB). The CCB allows for linked dependencies between the hoists to meet code requirements and improve overall efficiency.
For additional products related to permanently installed equipment, please visit our Façade Maintenance solutions.
| Part Number | Gross Load Capacity | Phase | Overspeed Brake | Overload | Slack Wire Rope Brake | Top Limit |
|---|---|---|---|---|---|---|
| 723721-1 | 1250 lb (567 kg) | 3 | | | | |
| 723721-2 | 1000 lb (453.6 kg) | 3 | | | | |
| 723721-3 | 1150 lb (521.6 kg) | 3 | | | | |
Additional Specifications
- Voltage: 208 V +10%/-10%
- Weight: 112 lb (50.8 kg)
- Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
- Travel Speed: 35 ft/min (21.3 m/min)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Construction: 5 x 26 or 6 x 19, FC Right Regular Lay IPS or EIPS Preformed, Galvanized or Bright
- Central Control Box (sold separately)
- 723693-1: Central Control Box for End Gate Mount
- 723693-2: Central Control Box for Platform Mount
Talk to a specialist
"*" indicates required fields
Robust Electrical Performance
- Lowest voltage operating range: 177 run volts
- Widest overall operating range: 208V +10%/-15% Single Phase, +10%/-10% Three Phase
- Robust components-sized to handle low end voltage
- New technologies increase uptime
- Field-replaceable motherboard to resolve most electrical issues in 10 minutes or less
Durability
- Engineered polymer covers prevent damage to expensive components and prevent debris build-up
- Long mechanical part life
- Designed for easy clean-up and maintenance
Field Tested Operation
- Most extensively tested hoist ever
- Rigorous attention to field results
Key Features
- Type = Electric
- Electrical improvements extend component life
- Long mechanical component life
- Simplified operation
- English/Spanish labels & Operators’ Manuals
- Reliable load dependent traction
- Controlled descent
- Remote-ready
- Power indicator light
- Built-in overspeed brake
- Hour meter
- Optional secondary wire rope brake
- Optional overload kit
- Optional top limit switch
