Powered Platforms
Spider’s PI Powered Platform is specifically designed for permanent installation. With lightweight aluminum construction, a UL tested frame and a full range of features and options that meet OSHA 1910.66 requirements, the platform can be configured for any facade maintenance needs.
Spider’s PI platform is powered by our SC1000 Series hoist, for proven safety, reliability, and productivity.
Platforms can be configured in lengths of up to 30 ft (9.1 m) and with drops of up to 500 ft (152.4 m). Configurations available that can be broken down and relocated, including the ability to fit through a standard doorway.

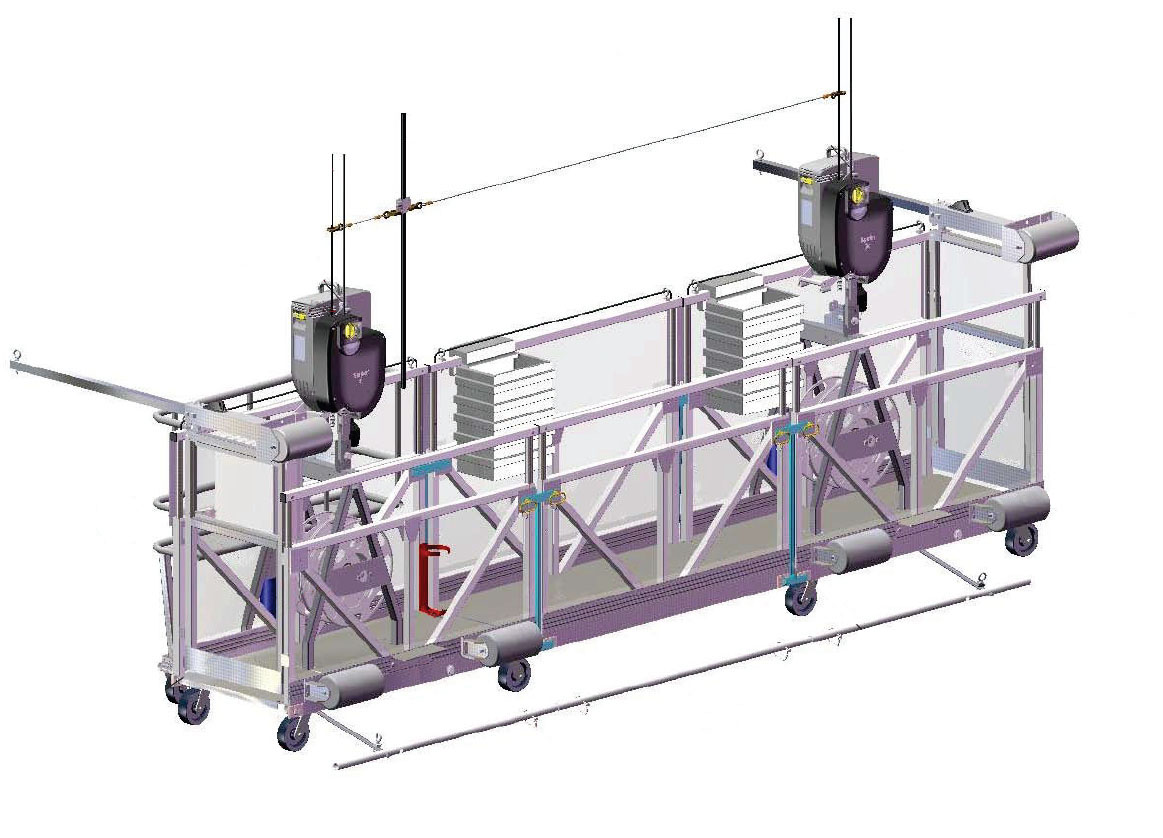

The Spider PI Mod Powered Platform has a modular design. Two 5ft. end sections can be combined with middle sections of 3, 5, and 10 ft to create almost any length up to 30 ft (9.1 m).
Standard Features
- All Around Perforated Aluminum Screening
- Power Cord (NEMA L15-30)
- Single or Twin-Drum Wire Winders 125m or 200m Capacity
- Top Limit Switch
- Overload Protection
- Low Noise Caster Wheels
- Platform Connectors
- Main Control Box
- Assist Access Step
- Primary Suspension Wire Rope 5/16 or 8.4mm
- Fire Extinguisher Bracket (Extinguisher must be purchased locally)
- 3 Phase Protection (electrical overload, phase reversal, phase failure)
- Powered by SC1000 Series Traction Hoist
Talk to a specialist
"*" indicates required fields
Optional equipment
- Cable Supports
- Push-Out Roller Assembly
- Lower Limit Device
- Dog Line with Four-Line System Only
- Slack Rope Device with Four-Line System Only
- Cable Basket (350 or 500 ft capacity)
- Water Bucket
- Fire Extinguisher Bracket (Extinguisher must be purchased locally)
- Non-Marking Face Rollers (Adjustable or Fixed)
- Secondary Suspension Wire Rope 5/16 or 8.4mm
- End Gate
- Wheel Extension Assy
- Fly Deck (Not shown)1
- Wire Winder Wrench & Socket (Not shown)
- Anemometer (Handheld—Not shown)
- Jack Assembly (Not shown)
1Not available for all configuration setups—stability engineered solution.
