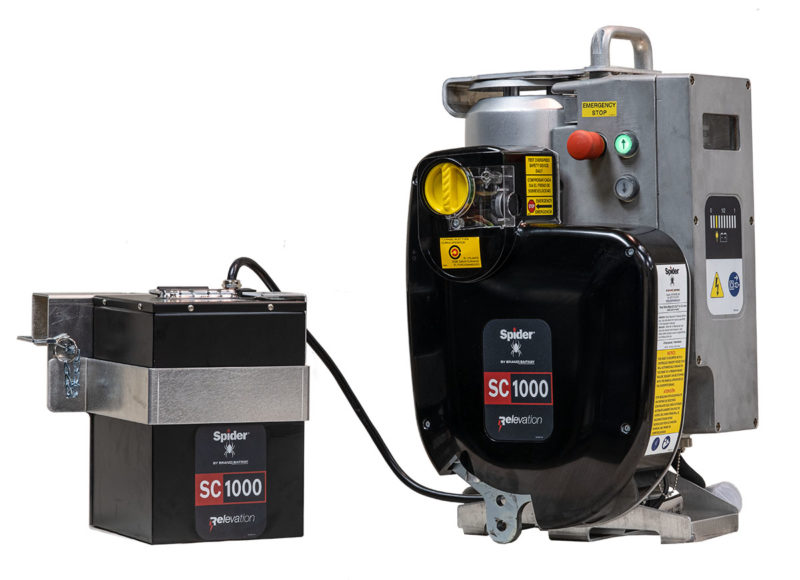

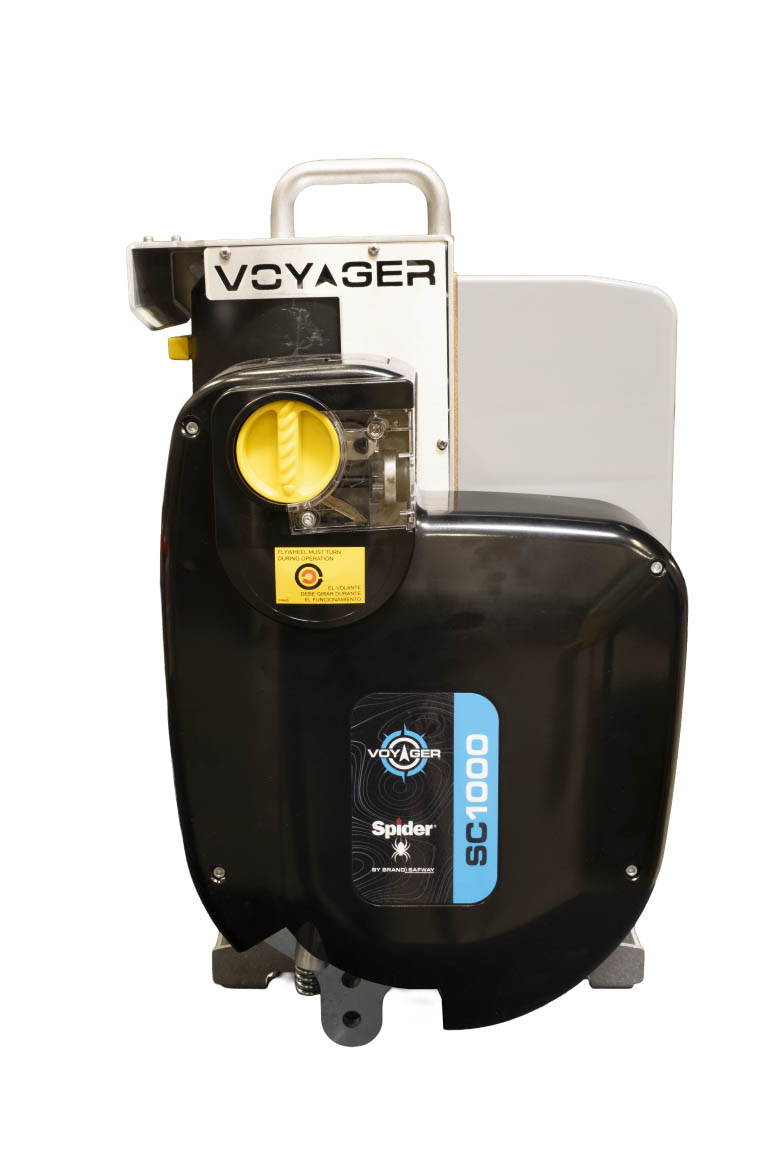

SC1000 Relevation Hoist

A REVOLUTION in traction hoist technology.

Spider’s SC1000 Relevation hoist is the only battery-powered traction hoist on the market. With a 1000 lb capacity and personnel rating, the SC1000 Relevation lets you work at elevation safely, reliably, anywhere you need it.

Specifications

Part NumberSlack RopeOverloadTop Limit
724183-1
724184-1
724185-1

SC1000 Relevation Accessories

Part NumberDescription
724204-1Relevation Battery Charger; 5A
724205-1Relevation Battery Charger; 10A
723872-1Relevation Battery

Additional Specifications

  • Working Load Limit: 1000 lb (454 kg)
  • Voltage (charger): 110/220V
  • Dimensions: 14 x 12 x 24 in (356 x 305 x 610 mm)
  • Weight:
    • Hoist: 127 lb (57.6 kg)
    • Battery: 38 lb (17.2 kg)
  • Travel Speed: 35 fpm (10.7 mpm)
  • Hoist Construction: Aluminum, Steel and Engineered Polymer
  • Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
  • Wire Rope Specification: 5×26, 6×19, or 6×31; IWRC (Independent Wire Rope Core) or FC (Fiber Core); Right Regular Lay, IPS (improved Plow Steel); Preformed; Galvanized or Bright

    Note: User must verify that the wire rope meets or exceeds applicable codes for breaking strength safety factor. USA temporary applications require a 6:1 safety ratio.

Talk to a specialist

"*" indicates required fields

Name*
This field is for validation purposes and should be left unchanged.

Benefits

  • No power cables
  • No need to call an electrician or rent a generator
  • No loss of productivity due to unreliable power
  • Minimized service calls and reduced maintenance

Who will benefit? Jobsites…

  • with unstable or inadequate power
  • with no available power supply
  • with uncommon power (110V, 400V) or requiring a certified electrician to use
  • where power cables are inconvenient, difficult to manage, or not allowed by the owner

Hoist Features

Enhanced Capabilities

  • Soft start & soft stop
  • Quiet operation
  • Best-in-class operating temperature range
  • Consistent motor speeds regardless of battery charge level
  • Display for battery charge and hour meter

Robust & Durable Construction

  • Cast control box, IP64-rated
  • Protection plate over motor
  • Proven nylon-reinforced polymer traction cover

Ease of Use

  • Identical platform compatibility as SC100
  • Overload set at 125% of rated load
  • Options: top limit switch, slack rope safety (for secondary wire rope)

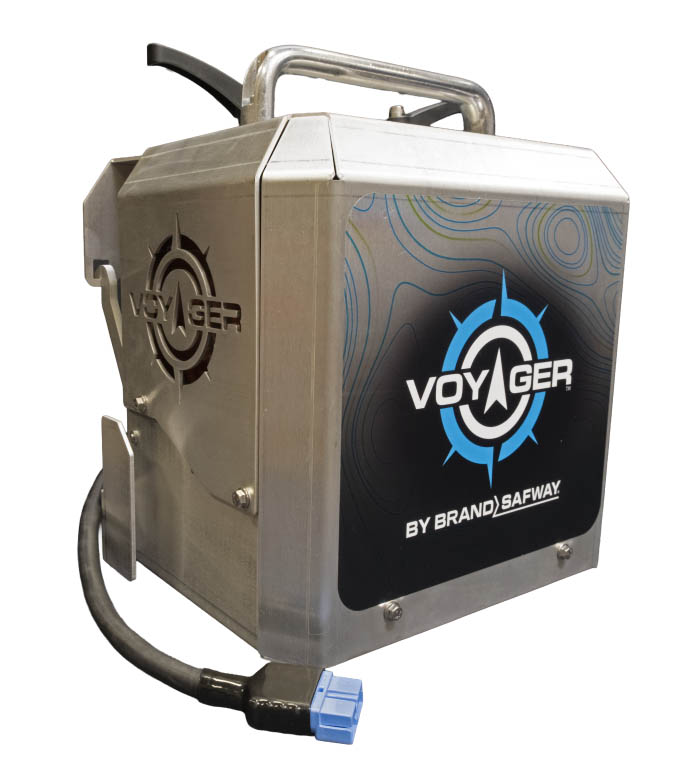

Battery Features

Superior Jobsite Performance

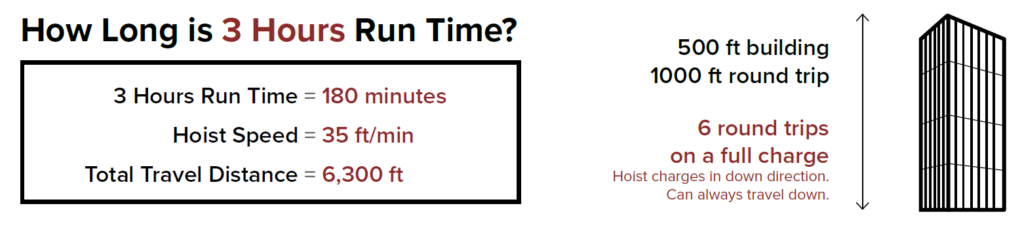

  • 3 hours of total run time (up/down travel combined)
  • Recharges in the down direction

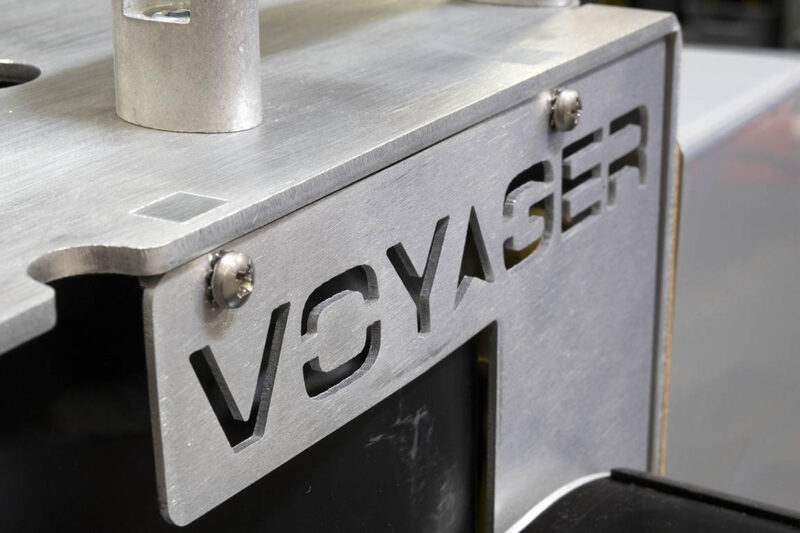

Durable Exterior Casing

  • Rated to IP64
  • Integrated platform hanger bracket

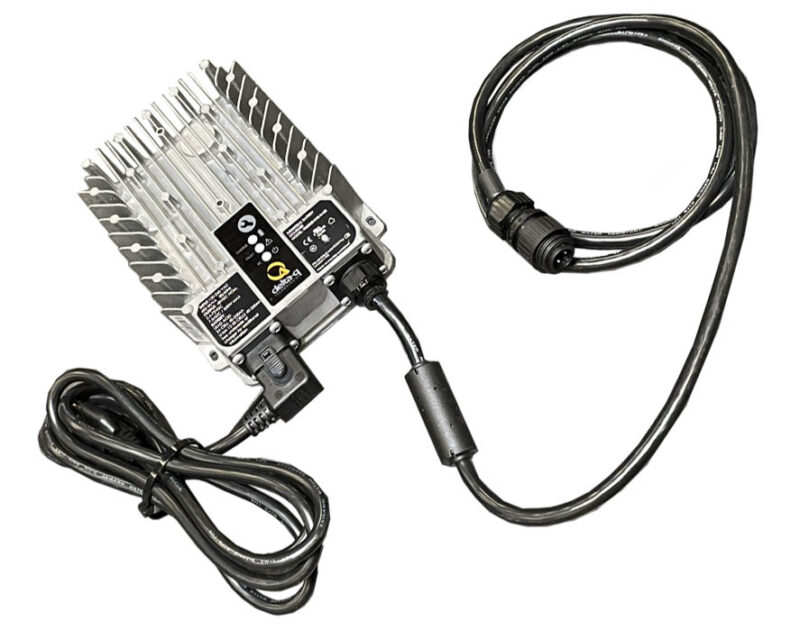

Convenient Charging

  • Lithium-ion battery technology
  • 5A battery charger included
  • Integrated battery management system
  • Charges on 110/220V
  • Full charge in 8 hours
