Bosun chairs provide suspended access for individual workers needing to perform tasks at elevation.
The foot legs of this bosun chair fold up to provide easier access to spaces with limited openings.
|Part Number||Live Load Capacity1||Weight Without Hoist|
|710272-1||250 lb||113.4 kg||38 lb||17.2 kg|
- Dimensions From Base of Chair to Top of Mast: 64.75 in (1600 mm)
- Dimensions From Outside of Caster to the Seat: 24.4 in (620 mm)
- Dimensions From Tip to Tip on Foot Pegs When Folded Down (Width): 26 in (660 mm)
- Dimensions From Edge to Edge on Seat (Width): 18.7 in (475 mm)

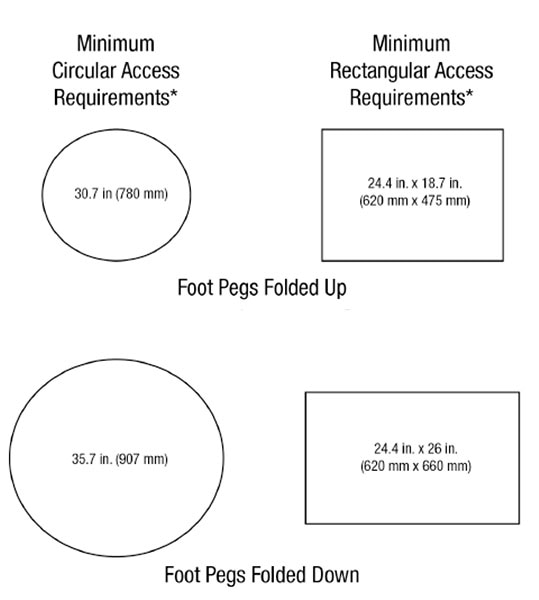

(With foot pegs folded up, this is the smallest width.)
The hoist mounts directly below the seat of the bosun chair. Wire rope enters at the top of the mast between the roller and the inside of the mast tube. The space between the two rollers at the top of the mast is designed to accommodate a secondary wire rope on a different hoist.
Note: At all times, the wire ropes should enter the top of the mast in a straight vertical alignment. Do not bend the wire rope or change its direction. As the wire rope leaves the hoist, it moves downward in straight vertical movement through the space created on the bottom of the chair.
