Connecting Devices

Connecting devices are used to connect a worker’s harness to an anchor or anchorage connector.

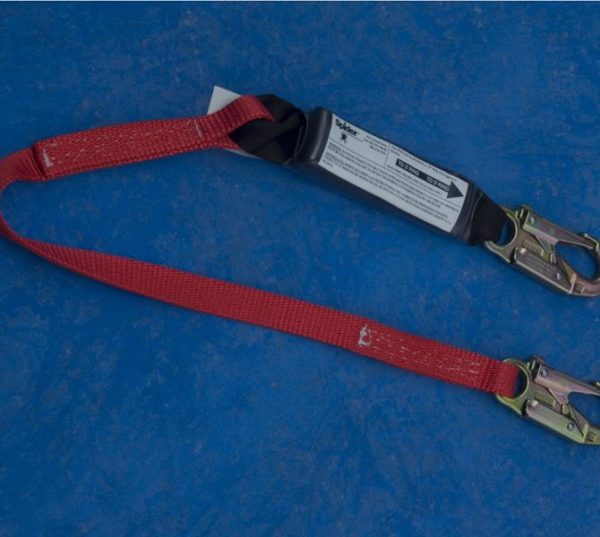

Spider provides a wide range of innovative, user-friendly connecting devices for every application, including shock-absorbing lanyards, tie-back lanyards, and rope grabs for use with a vertical lifeline.

×

Specifications

Part NumberItemMaterial Of ConstructionLoad Limit
BD-000055/8 in. (16 mm) Diameter Stainless Steel Trailing Rope GrabAll non-corrosive materials; stainless steel, brass and bronze1 worker: 310 lbs (140.6 kg) including person, tools, etc.
P-002135/16 in. (8 mm) Cable GrabHigh Strength, Corrosion-resistant Stainless Steel1 worker: 310 lbs (140.6 kg) including person, tools, etc.
550205Manual rope grab for use with 5/8” (16mm) or ¾” (19mm) synthetic rope Stainless steel1 worker: 310 lbs (140.6 kg) including person, tools, etc.

Certifications

Spider Rope Grabs meet or exceed the requirements of OSHA 1926 Subpart M, ANSI A10.14 and ANSI Z359.1 at the time of shipment.

Identification

Identification is made by the presence of impression stamps on the side plates of the grab.
