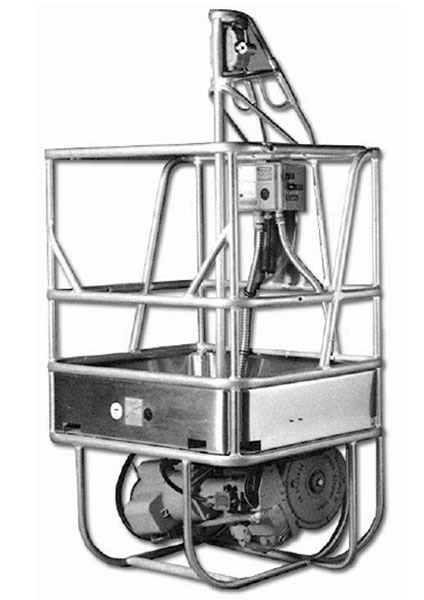

ST-180 Electric Spider Drum Hoists

Durable, efficient transmission offers workhorse performance with minimal parts and maintenance.

  • Controlled descent at half rated speed during power loss
  • Long-lasting electromagnetic brake; always engaged when power is off
  • Built-in overload sensor and overspeed brake
  • Reinforced midair transfer point and wear plates at base
  • Hour meter records operating hours for maintenance tracking

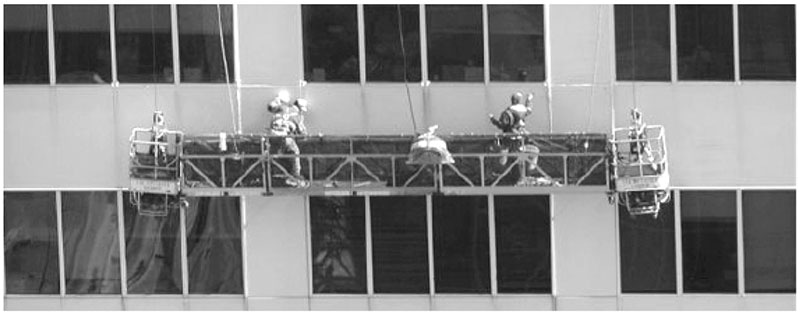

A self-contained, single line unit, the ST-180 accommodates two workers to double productivity. Contractors can add modular platforms or plank sections between two ST-180s to form a double line suspended scaffold. With modular sections, workers can quickly connect sections without special tools to create a larger working span with flydecks attached. The unit comes equipped with numerous safety devices to ensure safe operation.


Part NumberTravel
ST-18030 fpm (9.2 mpm)220 V1 Ph 60 Hz
ST-180-130 fpm (9.2 mpm)220 V1 Ph 60 Hz
ST-180-530 fpm (9.2 mpm)208 V3 Ph 60 Hz
1fpm/mpm = feet per minute / meters per minute

Additional Specifications

  • Gross Load Capacity: 1250 lb (567 kg)
  • Drum Capacity:
    • 500 ft (152.4 m) for models ST-180
    • 1000 ft (304.8 m) for models ST-180-1 & ST-180-5

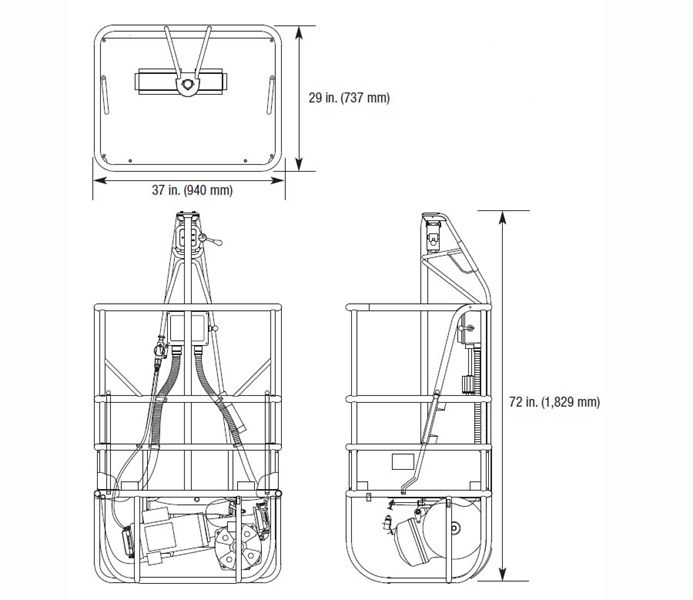

  • Dimensions: 37 x 29 x 72 in (940 x 737 x 1829 mm)
  • Weight:
    • 260 lb (117.9 kg) for models ST-180
    • 280 lb (127 kg) for models ST-180-1 & ST-180-5
  • Basket Construction: Aluminum and Steel
  • Wire Rope Sizing: 5/16 in (8 mm)
  • Wire Rope Construction: 6 x 19

Talk to a specialist

"*" indicates required fields

ZIP code used to route your inquiry to the nearest Spider representative.
This field is for validation purposes and should be left unchanged.

Key Features

  • Electromagnetic-actuated primary brake engages whenever power is off.
  • Automated emergency brake engages in the event of sudden or excessive downward acceleration.
  • Overload limit switch halts upward travel when hoist is overloaded.
  • Durable, efficient transmission exceeds industry performance expectations.
  • Motor and winch are mounted below deck to reduce workspace obstructions and protect components from hazards in the work environment. The drive unit creates a low center of gravity for the work cage, providing greater protection and stability.
  • Level winding winch automatically and neatly stores wire rope on drum, eliminating dangling wire rope tails, ground hazards and premature rope replacement.
  • Wire rope positively attaches to the drum with swaged-on cable drum hook and is supplied with thimble eye on the rigging end.
  • Specially designed control lever for easy operation.
  • Reinforced midair transfer point.
  • Reliable vented transmission prohibits entry of corrosive agents for greater durability.
  • 1000 ft version only available for rent.
