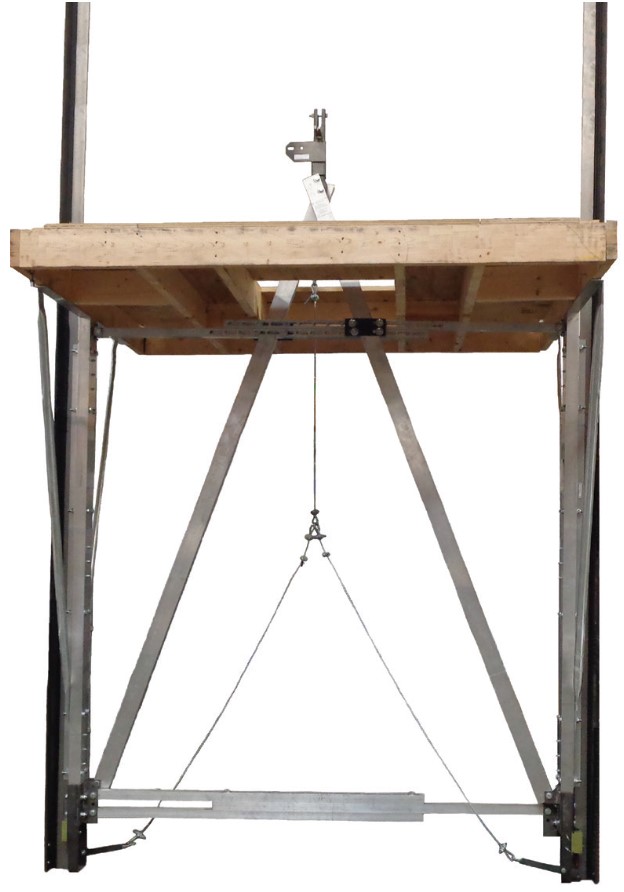

SafeCar 800 False Car

The SafeCar 800 is Spider’s innovative false car, offering easy installation, high travel speeds, and job site versatility to maximize productivity during elevator installations.

Adjustable to fit in hoistways with different rail face sizes and different distances between guide rails
Optional deck, handrails, and canopy for overhead protection

View Product Documentation

Specifications

Part Number	Capacity	Travel Speed¹	Weight²
721358-3	Up to 800 lb (363 kg)	Up to 70 fpm (21.3 mpm)	Frame: 187 lb (85 kg) Guardrail Supports: 44 lb (20 kg)

¹Fpm/mpm = feet per minute/meters per minute.
²Weights do not include decking or guardrails.

Additional Specifications

Adjustable:
- Fits hoistways with distance between guide rails (DBGs) from 5 ft. 5 in. to 9 ft (1.7 m to 2.7 m)
- Fits rail face sizes of 5/8 in. (16 mm), 3/4 in. (19 mm), 1 1/8 in. (29 mm) and 1 1/4 in. (32 mm)
Compatibility:
- Works with Spider’s SC1500-GHS, SC1500, UpPro P1009 GHS, and UpPro P1009 traction hoists
Available Configurations (contact Spider for more information):
- Frame only
- Frame with deck and handrails
- Frame with deck, handrails and canopy support for overhead protections

Talk to a specialist

"*" indicates required fields

Name*

Email*

Phone*

ZIP Code*

ZIP code used to route your inquiry to the nearest Spider representative.

Part Number

CAPTCHA

Name

This field is for validation purposes and should be left unchanged.

Key Features

Reduced assembly and installation time with minimal parts and modular construction.
Improved productivity with high lifting speeds up to 70 fpm (21.3 mpm) when used with Spider’s SC1500-GHS Guided High Speed traction hoist.
Increased strength and durability from rectangular aluminum tubes.
Improved product life due to Ultra High Molecular Weight (UHMW) polyethylene wear pads that eliminate metal-to-metal contact found on competitive models.
Maximized uptime with rapid delivery, service, and repair from 25 branches in the Americas.

Note: For installations that require piano wire placement on the face of the guardrail, an alternative false car model is available. Contact Spider to for more information.
