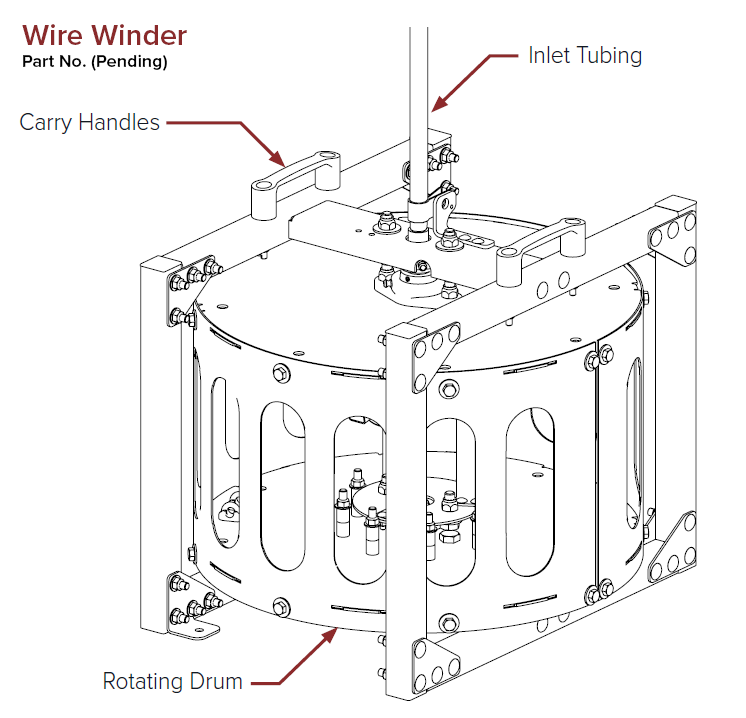

Wire Winders

  • Eliminates the ‘tail line’ in the suspension wire ropes below the scaffold to prevent damage to the building or possible injury to pedestrians
  • Prevents wire ropes from being blown into power lines on tight jobsites or being crushed or snagged by a vehicle
  • Provides convenient, tangle-free storage of wire ropes between usage and prevents contamination by dirt to prolong rope life
  • Greatly reduces line handling on ‘roof rigged’ jobs
  • Compact and lightweight


Part NumberWeightConstructionCapacity
5/16 in. (8 mm)
3/8 in. (10 mm)
Base Unit DimensionsCage Unit Dimensions (OD)1
9-9832 lb (14.5 kg)Steel600 ft (182.9 m)500 ft (152.4 m)9.75 x 24.5 x 12.25 in.

(248 x 622 x 311 mm)
20.25 in. (514 mm)
725334-146 lb (21 kg)
w/ tube extension
Aluminum750 ft (228 m)650 ft (198 m)20.9 x 23.5 x 22.8 in.

(530 x 600 x 580 mm)
22.8 in. (580 mm)
1 Outer Diameter

Key Features

  • Easy to install and operate – optional adapter attaches to hoist exit guide and hoist automatically feeds wire rope into the rotating basket
  • No motors or power supply required to operate.
