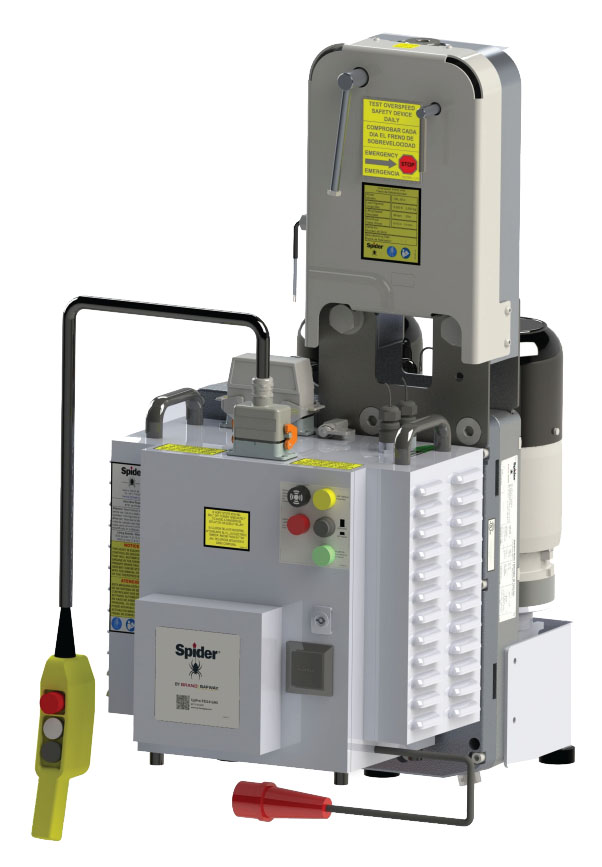

UpPro P2514 Hoist (5,500 lb)

Maximize elevator installation productivity with the highest capacity personnel hoist in the industry.

The UpPro P2514 GHS has a lifting capacity of up to 5,500 lb (2,500 kg) and offers speeds of up to 60 fpm for guided high speed use.



Part NumberModel #Speed1Certified Capacity
722457-1P251460 fpm (18.2mpm)UL: 5,500 lb (2,500 kg)
722456-1P251435 fpm (10.6mpm)UL: 5,500 lb (2,500 kg)
721466-4P2514 with Cart Assembly60 fpm (18.2mpm)UL: 5,500 lb (2,500 kg)
722457-2P231460 fpm (18.2mpm)cUL: 5,000 lb (2,273 kg)
722456-2P231435 fpm (10.6mpm)cUL: 5,000 lb (2,273 kg)
721466-5P2314 with Cart Assembly60 fpm (18.2mpm)cUL: 5,000 lb (2,273 kg)
1fpm/mpm = feet per minute / meters per minute

Additional Specifications

  • Power: 480V +10%/-15%; 60 Hz; 3-phase
  • Amperage at working load limit: 16 Amps
  • Wire Rope Size: 9/16 in. (14 mm)
  • Weight:
    • Hoist: 325 lb (147 kg) including safety
    • Control unit: 68 lb (31 kg)
  • Dimensions: 18.5 x 24.6 x 40.5 in. (470 x 627 x 1,029 mm)

Talk to a specialist

"*" indicates required fields

ZIP code used to route your inquiry to the nearest Spider representative.
This field is for validation purposes and should be left unchanged.

Key Features

  • High lifting capacity of up to 5,500 lb (2,500 kg)
  • Multi-speed control up to 60 fpm (18 mpm) maximizes productivity based on load.
  • Optimal power management and soft starts and stops with variable frequency drive
  • Industry-best power range, from 410 to 520 line voltage, to eliminate most power supply issues
  • Multiple mounting options for various car sling or platform configurations
  • Ergonomic handling and flexible use with a detachable control unit
  • Ensured operator safety through torque-based overload protection and externally mounted Overspeed Safety Lock (OSL)
  • Controlled descent feature
  • Optional versatile cart for transporting and positioning hoist under the car sling
  • Maximized uptime with unmatched support from the industry’s largest branch network
