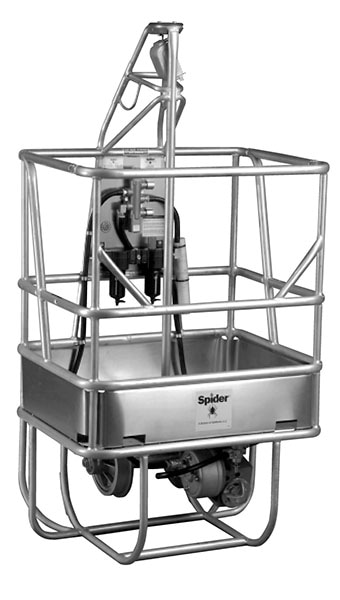

ST-17 Air Spider Basket

The industry standard for work in refineries, tank farms, shipyards, offshore platforms and heavy construction has been redesigned to meet your needs and simplify your ownership experience – lowering your cost of ownership, improving the reliability of the components, and making it easier to service this product right.

A self-contained, single line unit, the ST-17 accommodates two workers to double productivity. Contractors can add modular platforms or plank sections between two ST-17s to form a double line suspended scaffold. With modular sections, workers can quickly connect sections without special tools to create a larger working span with flydecks attached. The unit comes equipped with numerous safety devices to ensure safe operation.

The ST-17 is the finest quality work basket in the world and is a result of years of improvements, primarily from customer feedback.

Specifications

Part Number1Item DescriptionTravel Speed2Power Requirements
ST-17-3-XXXAluminum Basket, Thimble30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-4-XXXAluminum Basket, 18 in. Eye Splice30 fpm
(9.2 mpm)
120 psi air @ 60 cfm

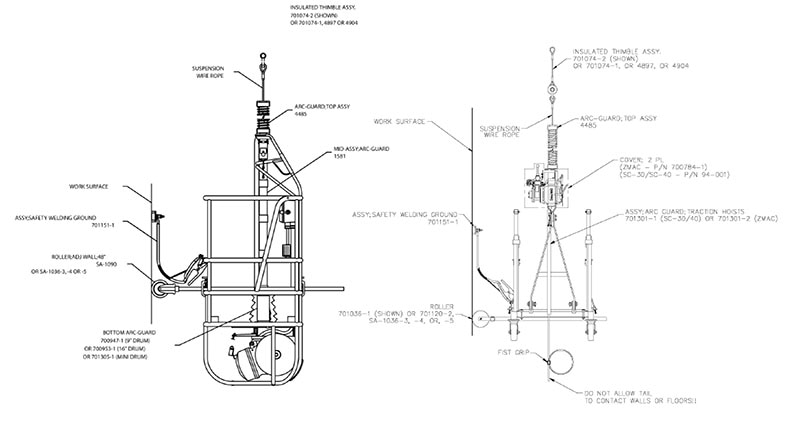

ST-17-5-XXXAluminum Basket, Thimble, Arc Guard Kit30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-6-XXXAluminum Basket, 18 in. Eye Splice, Arc Guard Kit30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-7-XXXStainless Steel Basket, Thimble30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-8-XXXStainless Steel Basket, 18 in. Eye Splice30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-9-XXXStainless Steel Basket, Thimble, Arc Guard Kit30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
ST-17-10-XXXStainless Steel Basket, 18 in. Eye Splice, Arc Guard Kit30 fpm
(9.2 mpm)
120 psi air @ 60 cfm
1“XXX” denotes length of wire rope, available in lengths of 50-350 ft in 50 ft. increments. For example, “ST-17-4-50” is the part number for a ST-17-4 with 50 ft of wire rope.
2fpm/mpm = feet per minute/meters per minute.

Additional Specifications

  • Gross Load Capacity: 1000 lb. (453.6 kg)

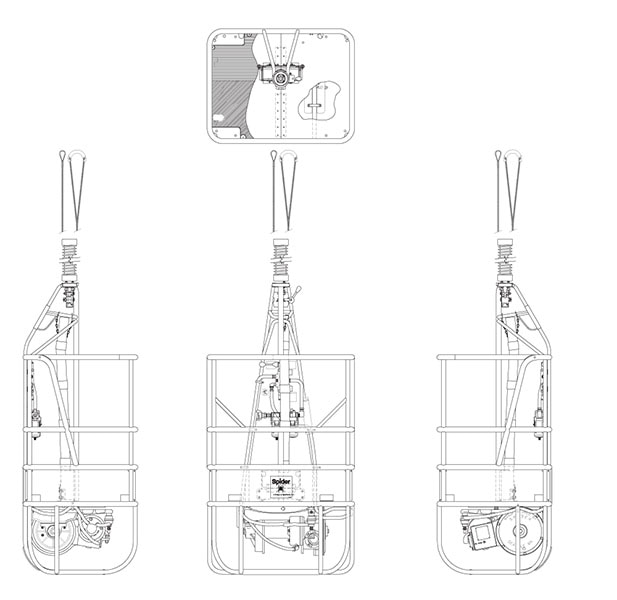

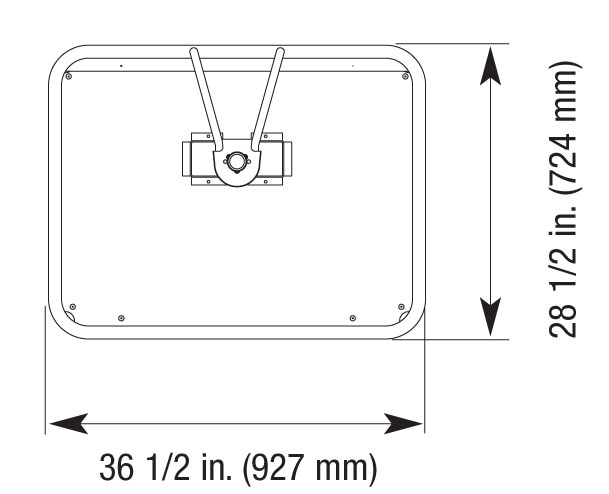

  • Dimensions: 37 x 29 x 72 in (940 x 737 x 1829 mm)
  • Weight: 210 lb (95.3 kg)
  • Wire Rope Size: 5/16 in (8 mm)
  • Wire Rope Construction: Seale Construction 6 x 19
  • Basket Construction: Aluminum and Steel

Talk to a specialist

"*" indicates required fields

Name*
This field is for validation purposes and should be left unchanged.

Key Features

  • Air-powered motor.
  • Reinforced midair transfer point and wear plates at base.
  • Winding drum hoist offers safe, efficient operation in hazardous and corrosive environments.
  • Paint and blast media on wire rope do not impact operation of unit.
  • Reliable vented transmission prohibits entry of corrosive agents for greater durability.
  • Constant pressure versa valve ensures complete, immediate stop on release of operating lever.
  • Built-in breather vent kit.
  • Simpler wire rope changes.
  • Simpler service.
  • Reusable wear parts.
  • Fairlead guide replaces steel wire rope guides:
    • Two mating universal pieces extend life four times that of prior design.
    • Wear guide that indicates replacement interval.
    • Polymer material resists corrosion.
  • Tension holder assembly:
    • Simple polymer assembly.
    • Simple test shows when to replace tension blocks.
  • More robust and reliable oiler/filter lubricator assembly:
    • Easier mounting.
    • Robust mounting brackets.
    • Better visual management.
    • Improved serviceability from special lubricants that decrease maintenance time for equipment used in harsh industrial environments.

Certifications

UL Certifications

CE Standard

The ST-17 has been modified to meet the European CE standard so it can be used where facility owners require CE certification.

  • Top limit switch with trip plate.
  • Lower limit/slack rope sensor with bypass for dereeving unit.
  • Emergency stop to cut air supply to basket in case of emergency.
  • Secondary wire rope grab for two-line system.

Note: The CE version is a special order product. Call Spider for details.
