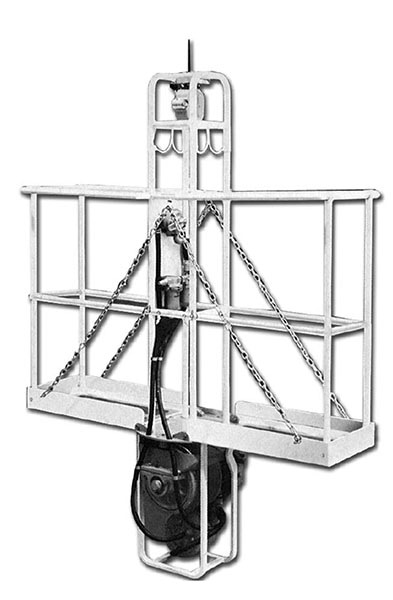

ST-26 Mini Spider Drum Hoist

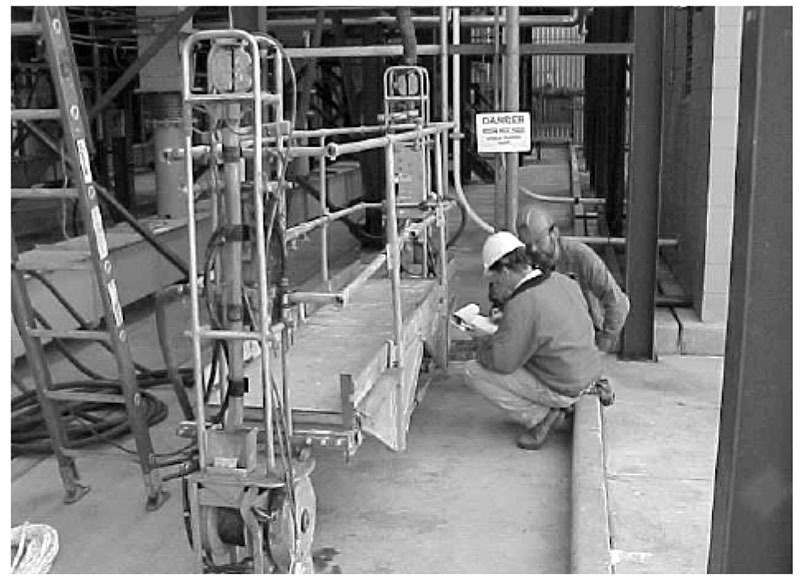

The ST-26 is the product of choice for work in stacks, ship holds, boilers, digesters, power plants and similar areas with limited access, where a trailing wire rope can be a hazard.

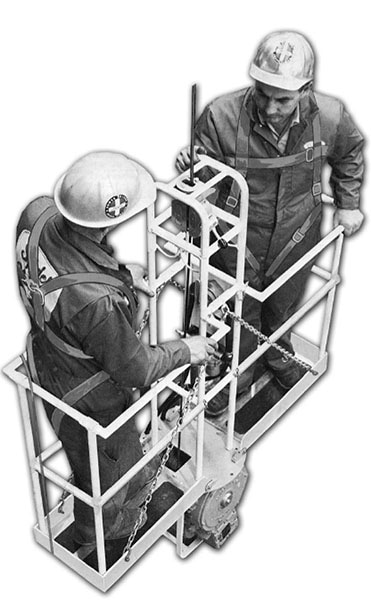

  • Has the capacity to carry two people
  • Air-powered motor
  • Reliable vented transmission prohibits entry of corrosive agents for greater durability.
  • Reinforced midair transfer point
  • Passes through an 18 in. (457 mm) circular opening
  • Also available in larger dimensions with an electric motor by special order

Specifications

Part NumberTravel Speed1Power Requirements
ST-2630 fpm (9.2 mpm)120 psi air @ 60 cfm
1fpm/mpm = feet per minute / meters per minute

Additional Specifications

  • Gross Load Capacity: 1000 lb (453.6 kg)
  • Drum Capacity: 235 ft (72 m)

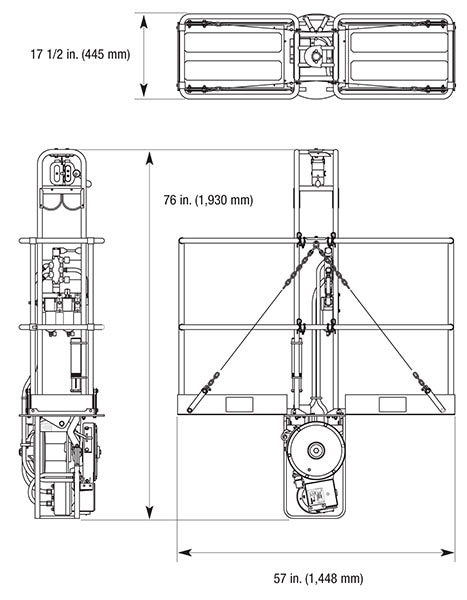

  • Open Dimensions: 57 x 17.5 x 76 in (1448 x 445 x 1930 mm)
  • Folded Dimensions: 13.5 x 17.5 x 76 in (343 x 445 x 1930 mm)
  • Weight: 180 lb (81.7 kg)
  • Motor: 1.25 hp Vane
  • Wire Rope Size: 5/16 in (8 mm)
  • Wire Rope Construction: Seale Construction 6 x 19
  • Basket Construction: Aluminum and Steel

Certifications

UL Certifications
UL Certifications
