Fixed Modular Platform—Segments & Configurations
Spider Modular Platforms are designed for speed and ease of set-up, versatile uses, high load capacities and long working spans. Built to the durability standard we hold for our own rental fleet, “Spider Mod” is American-made and meets the expectations of the most demanding professional contractors.
- Heliarc-Welded Aluminum Construction.
- No more than 4-3 ft (1 m) mod sections can be used on a platform.
- Use with P-00247-201, Angular Stirrups
- Maximum Rated Load:
- 1,000 lbs. (453.6 kg) to 40 ft (12.2 m)
- 750 lbs. (340.2 kg) to 50 ft (15.2 m)
- 500 lbs. (226.8 kg) to 80 ft (24.4 m)
Specifications
| Part Number | Item | Decking Type | Weight | Length |
|---|---|---|---|---|
| 700755-1 | 3 ft (1 m) Section | Marine-grade plywood | 55 lb (24.9 kg) | 36 1/4 in. (921 mm) |
| 700755-2 | 3 ft (1 m) Section | Dimple | 57 lb (25.9 kg) | 36 1/4 in. (921 mm) |
| 700755-3 | 3 ft (1 m) Section | Grating | 58 lb (26.3 kg) | 36 1/4 in. (921 mm) |
| 4968 | 5 ft (1.5 m) Section | Marine-grade plywood | 78 lb (35.4 kg) | 60 1/4 in. (1,530 mm) |
| 4968-2 | 5 ft (1.5 m) Section | Dimple | 81 lb (36.7 kg) | 60 1/4 in. (1,530 mm) |
| 4968-3 | 5 ft (1.5 m) Section | Grating | 80 lb (36.3 kg) | 60 1/4 in. (1,530 mm) |
| 707711-1 | 7 ft (2.1 m) Section | Marine-grade plywood | 106 lb (48.1 kg) | 84 1/2 in. (2,140 mm) |
| 707711-2 | 7 ft (2.1 m) Section | Dimple | 115 lb (52.2 kg) | 84 1/2 in. (2,140 mm) |
| 707711-3 | 7 ft (2.1 m) Section | Grating | 115 lb (52.2 kg) | 84 1/2 in. (2,140 mm) |
| 4969 | 10 ft (3 m) Section | Marine-grade plywood | 142 lb (64.4 kg) | 120 1/4 in. (3,054 mm) |
| 4969-2 | 10 ft (3 m) Section | Dimple | 148 lb (67.1 kg) | 120 1/4 in. (3,054 mm) |
| 4969-3 | 10 ft (3 m) Section | Grating | 148 lb (67.1 kg) | 120 1/4 in. (3,054 mm) |
Additional Specifications
- Width: 29 3/8 in. (746 mm)
- Toeboard Height: 4 in. (102 mm)
- Handrails Collapsed Height: 31 3/8 in. (797 mm)
- Handrails can be pinned to heights of 36 or 42 in.
Talk to a specialist
"*" indicates required fields
Key Features
- Up to 80 ft (24.4 m) length, supported by only two hoists – longest length available on the market today
- Maximum rated load: 1,000 lbs. (453.6 kg) to 40 ft (12.2 m)
- 750 lbs. (340.2 kg) to 50 ft (15.2 m)
- 500 lbs. (226.8 kg) to 80 ft (24.4 m)
- Load ratings based on minimum platform weight configurations
- Versatile accessory package
- Aluminum sections for lighter platform weight
- Steel construction of connectors and end adapter stirrups for longer life
- Easy transport and assembly – join sections with connectors, install end adapter stirrups that include large casters for easy mobility on the site, and get to work.
- Can be easily handled and transported in a small pick-up truck
- One universal corner section allows adjustment in 7.5º increments up to 120º – saves time and money compared to using multiple single angle sections.
- Corner section has mounting location to position a traction hoist at the corner for improved platform stability.
- Low profile walk thru stirrups position workers closer to the rigging point for larger working swath.
- Can be used with traction and drum hoists
- All pins and connecting hardware are tethered to their components.
- Made in USA
Includes
- 3, 5, 7 & 10 ft (1, 1.5, 2.1 & 3 m) aluminum sections
- Corner sections with hoist mount location for angled platforms
- Hinged sections for three-point suspended platforms
- Walk thru stirrups
- Low profile walk thru stirrups (or ‘walk-by’ stirrup)

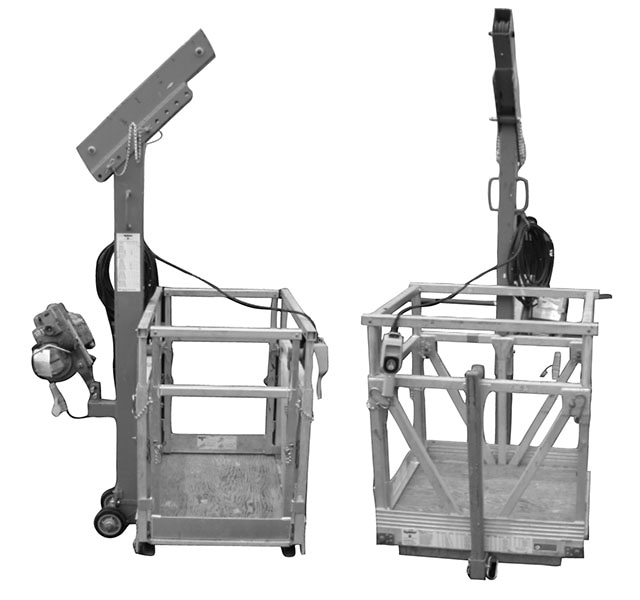

- Single line kit for making a 3, 5 or 7 ft (1, 1.5 or 2.1 m) work cage using the walk thru stirrup
Platform Disclaimer
- Some configurations based on 1,500 lbs. (680.4 kg) capacity hoists
- Load ratings based on minimum weight configurations
- Maximum weight configurations assembled from only 5 ft (1.5 m) sections
- Minimum weight configurations assembled using a maximum number of 10 ft (3 m) sections
- Stirrup and cross beam assemblies can be used with modular platforms on consultation with your Spider professional.
- Configurations using longer, specially engineered platforms are available. Consult your Spider professional.
