Fixed Modular Platform—Stirrups & Connectors
A-Frame stirrup assemblies and end adapters attach at the deck level of fixed length, ladder style pick boards or planks.
Note: Protect your toeboards! A 60.591 Rope Guiding Spring and a 6685 Outlet Spring Bracket easily attach to the bottom of the hoist with just a 3/4 in. (19 mm) wrench to spare your toeboards from damage often caused by wire rope while using the Cross Beam Assembly.

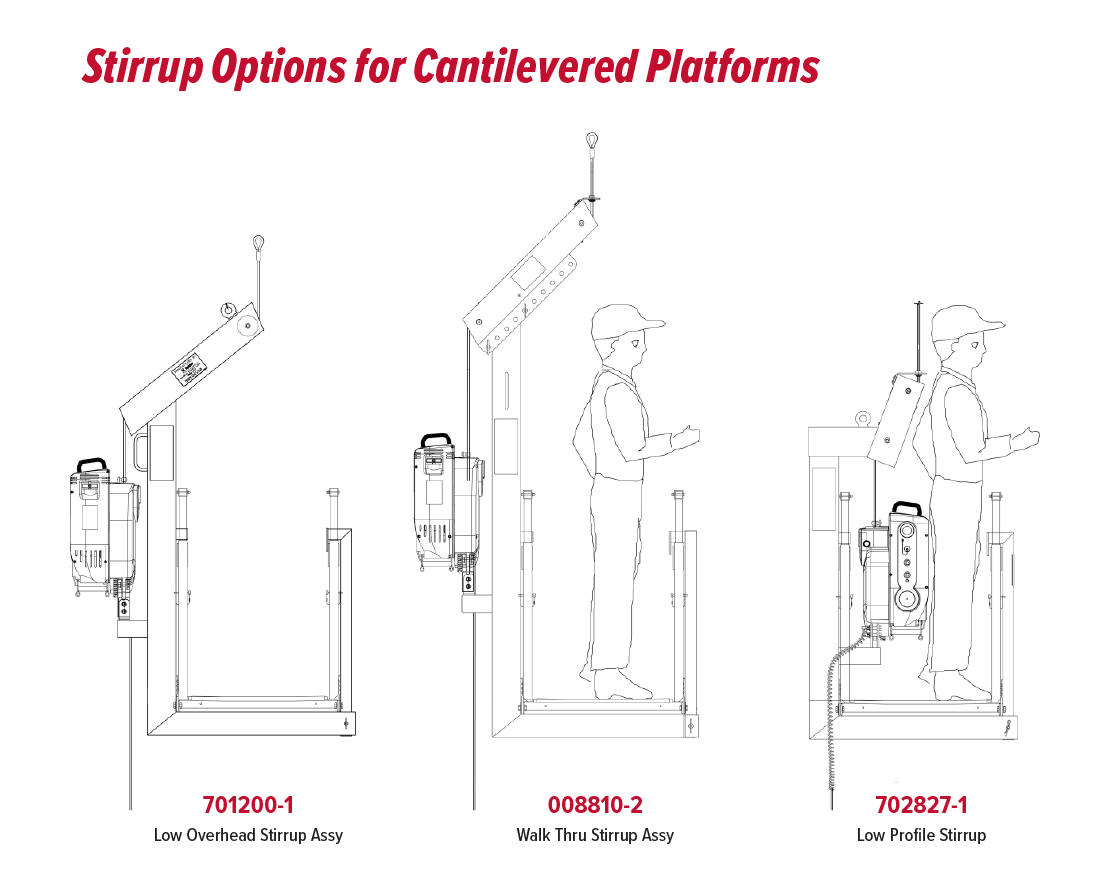

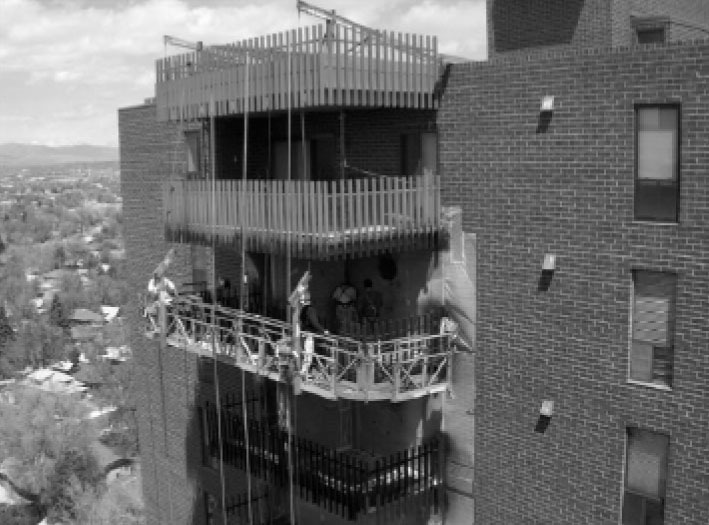

For cantilevered platforms, walk-thru stirrups are available in three different heights. Connectors and corner adapters are also available, allowing you to configure a platform to your specific needs.
Specifications
| Part Number | Item | Weight | Notes |
|---|---|---|---|

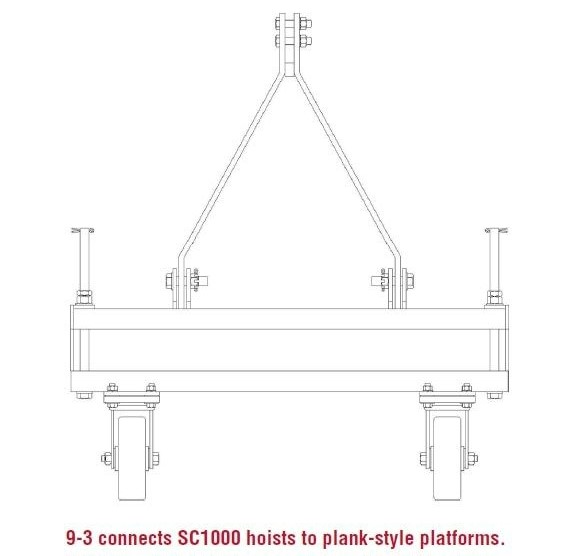

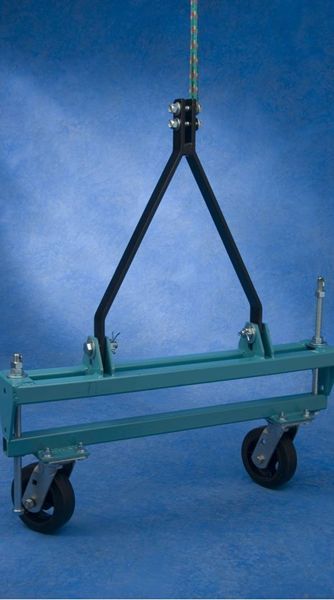

| 9-3 | A-Frame Stirrup Assembly | 51 lb (23.1 kg) | Includes 2-731 |

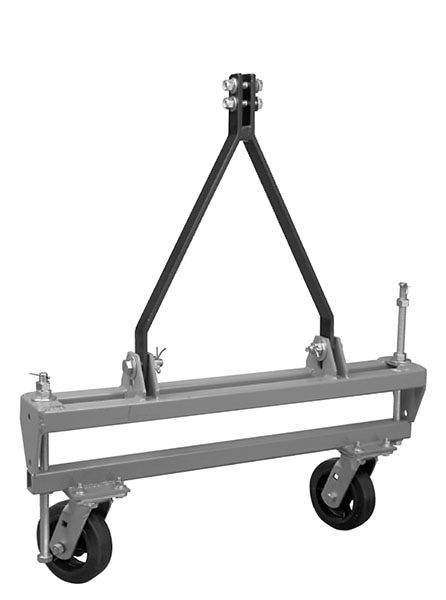

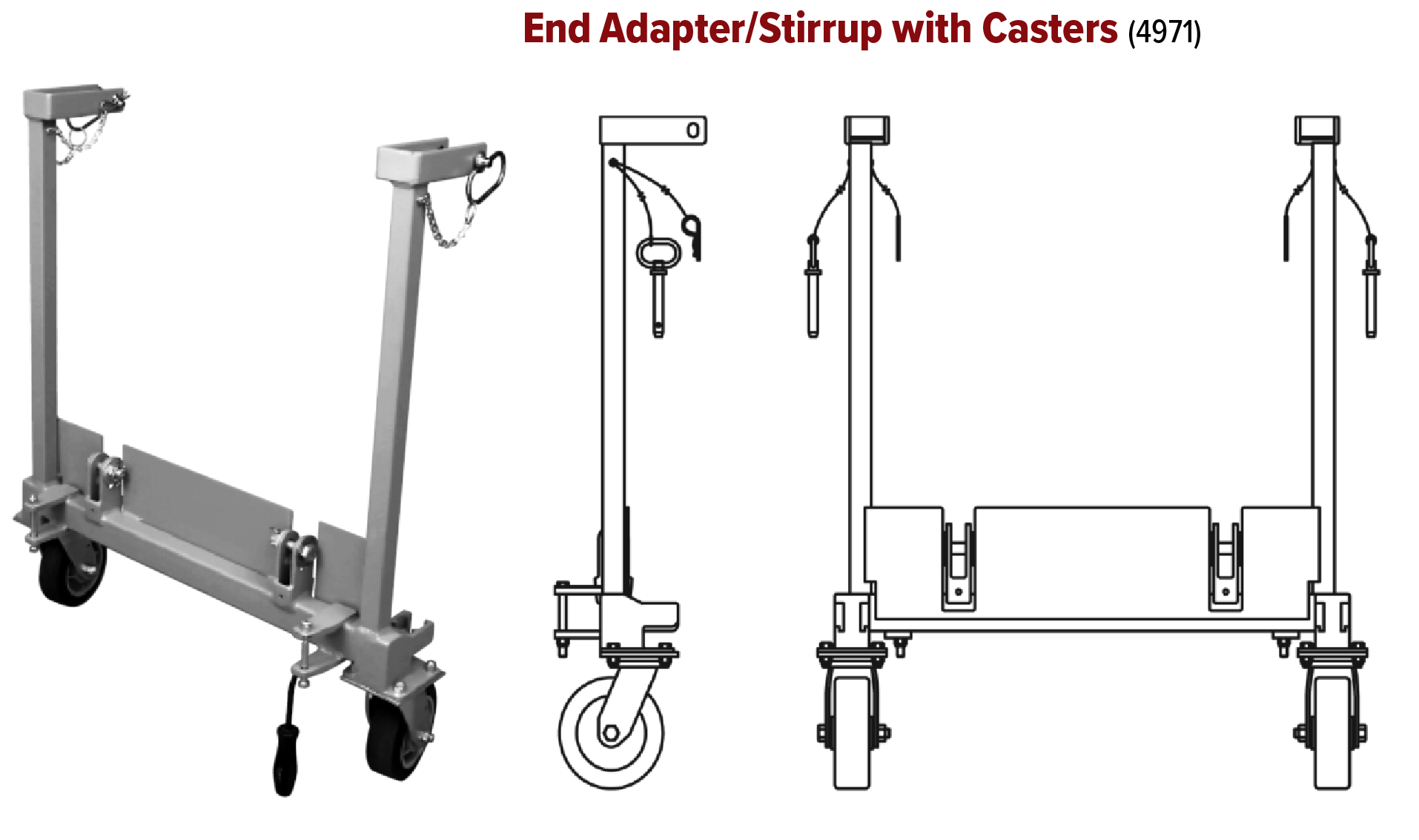

| 4971-1 | End Adapter/Stirrup with Casters | 37 lb (17 kg) | Used with A-Frame Stirrup (2-731) |
| 2-731 | A-Frame Stirrup | 8 lb (3.6 kg) | Used with End Adapter (4971-1) |
| 700958-1 | Extended A-Frame Stirrup | 16 lb (7.3 kg) | Used with End Adapter (4971-1) |
| 008811-2 | End Gate Assembly | 12 lb (5.4 kg) | Used with walk-thru stirrups |
| 700229-1 | Hinge Section | 40 lb (18.1 kg) | Used in applications where a third hoist is required on a straight platform |
Additional Specifications
- A-Frame Stirrup Load Capacity: 1,000 lb (453.6 kg)
- Platform Width: Approximately 28 in. wide (711 mm)
- Construction: Steel

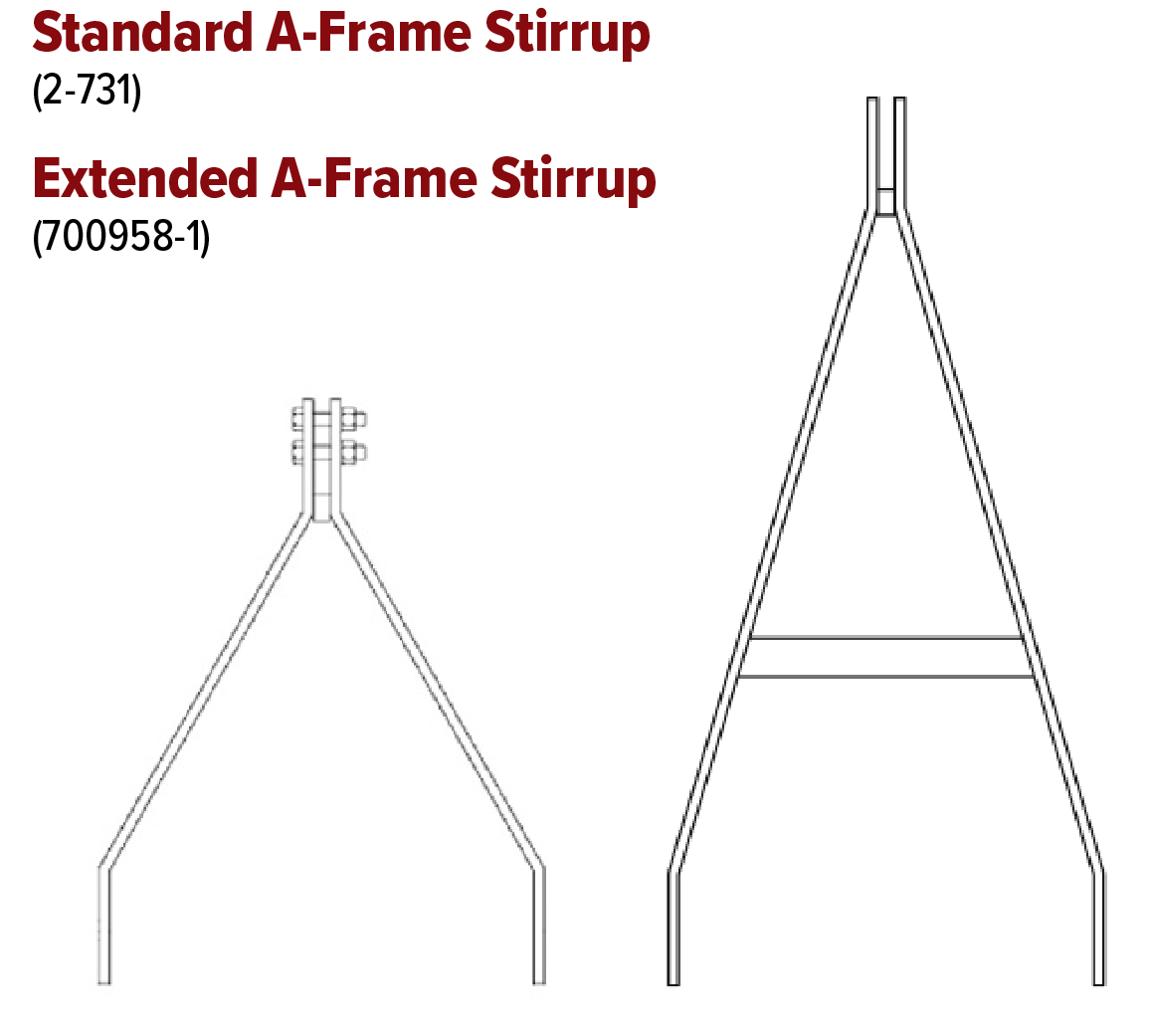

Note: For a higher hoist position, replace the standard A-Frame Stirrup (2-731) with the Extended A-Frame Stirrup (700958-1) to make a total stirrup height of 54 in. (1,372 mm). The A-Frame Stirrup and Extended A-Frame Stirrup are available separately.
Specifications
| Part Number | Item | Weight | Width | Height from Platform Deck to Uppermost Point on Stirrup | Distance of Suspension Wire Rope to Front Edge of Platform |
|---|---|---|---|---|---|
| 701200-1 | Low Overhead Stirrup Assembly | 110 lb (49.9 kg) | 49 5/16 in. (1.3 m) | 68 1/16 in. (1.7 m) | 16 13/16 in. (0.4 m) |
| 008810-2 | Walk Thru Stirrup Assembly | 140 lb (63.5 kg) | 49 1/4 in. (1.3 m) | 86 1/4 in. (2.2 m) | Varies from 18 3/8 in. (0.5 m) to 26 5/16 in. (0.7 m) |
| 702827-1 | Low Profile Stirrup Assembly | 108 lb (49 kg) | 36 in. (0.9 mm) | 56 15/16 in. (1.5 m) | 17 1/8 in. (0.4 m) |
Additional Specifications
Specifications
| Part Number | Item | Weight |
|---|---|---|

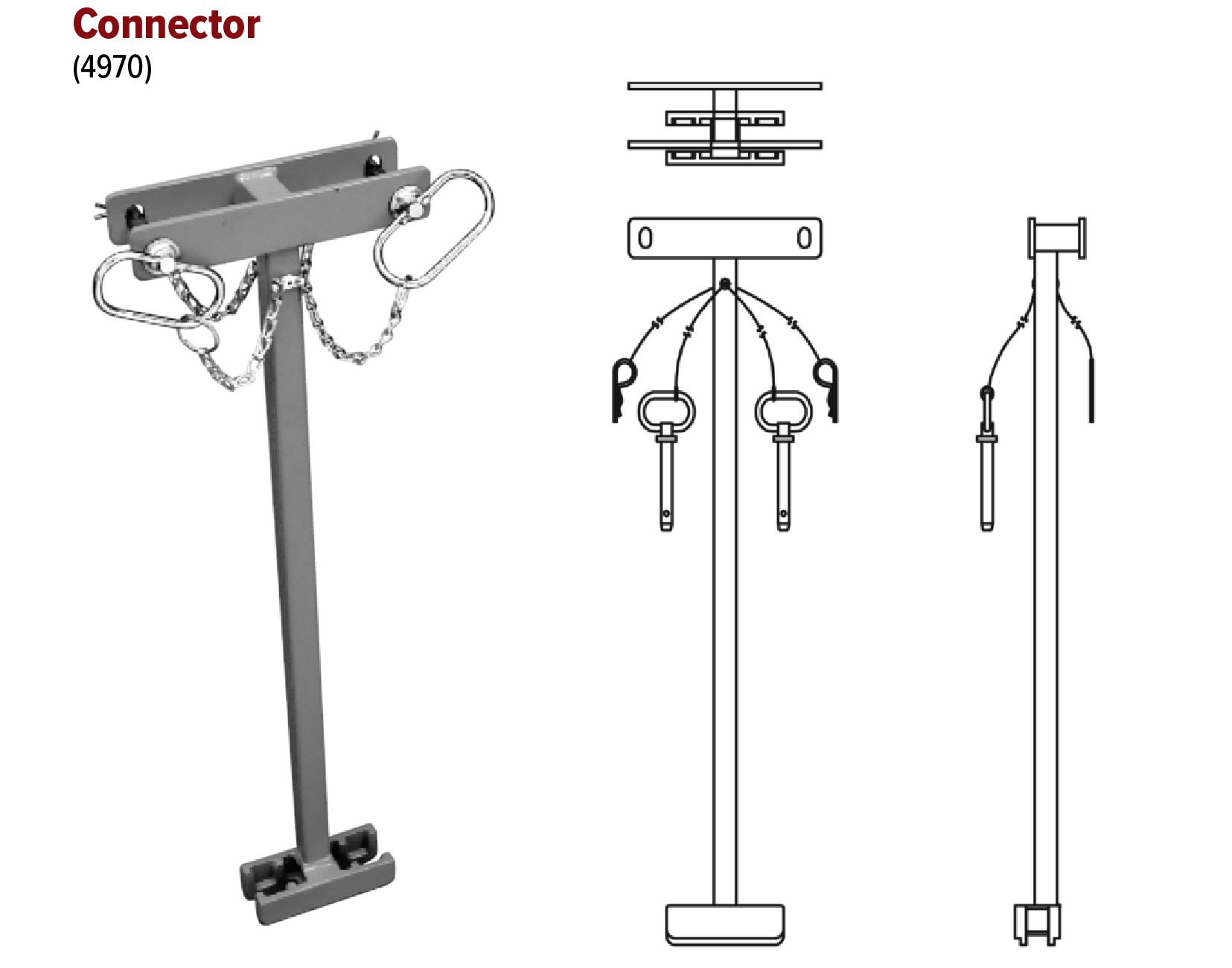

| 4970 | Connector | 7 lb (3 kg) |
| 008812-1 | Corner Adapter | 128 lb (58.1 kg) |
Additional Specifications
- Dimensions
- Connector: 26.44 x 7.125 in. (762 x 181 mm)
- Corner Adapter: 32 x 32 x 46 in. (813 x 813 x 1168 mm)
Additional info on Corner Adapter (008812-1).

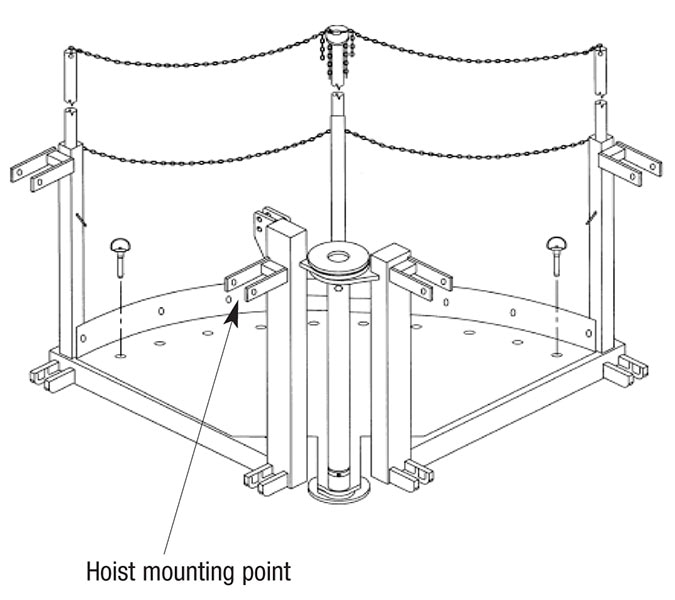

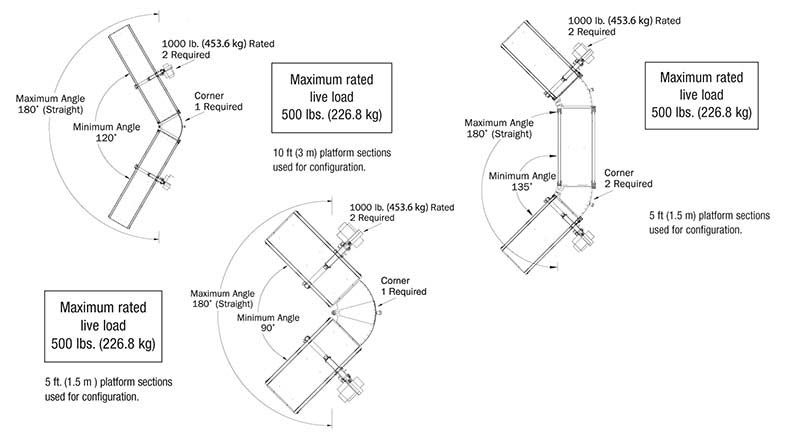

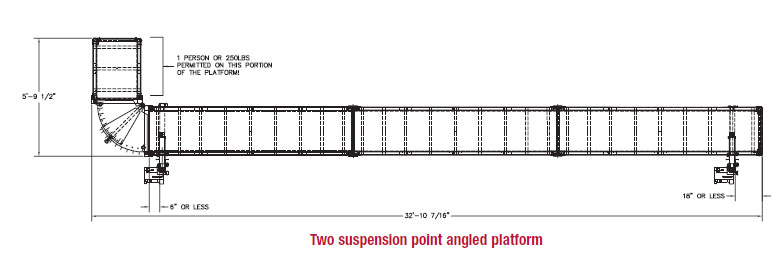

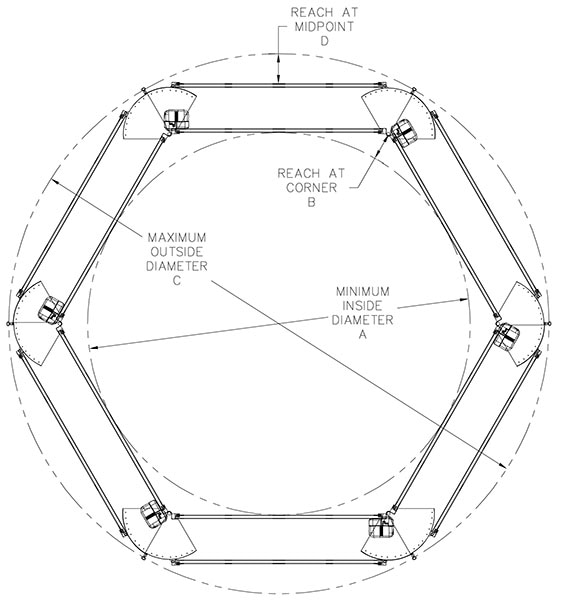

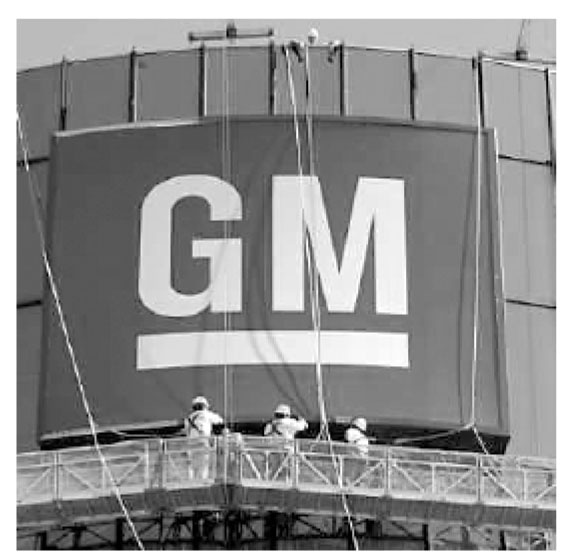

The corner adapter joins modular platforms so workers can go around the corner of the building or architectural detail or around circular structures. Angles from 7.5 to 120 are possible. A traction hoist mount is located on the corner for increased stability without the extra weight and expense of a walk thru stirrup. Countless platform configurations are available with this versatile accessory.
- Allows adjustability in 7.5º increments from 7.5 to 120º
- Positions hoist right at corner with the only structurally integrated corner section with hoist mount on the market
- Improved platform stability
- Extensive applications library available
