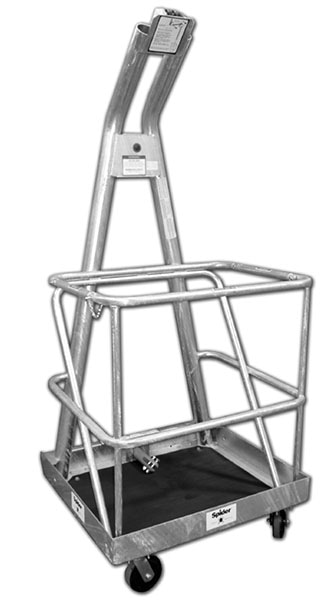

Steel Work Cage
The Steel Work Cage is the most durable cage, field proven by Spider’s rental fleet to last.
- Spider dependability
- Compatible with SC1000 and other brand traction hoists
- Durable, welded steel construction
- Guardrails have rounded corners and access gates
- Fits through standard 36 in. (914 mm) doorway
- Lifting/transfer lug
Specifications

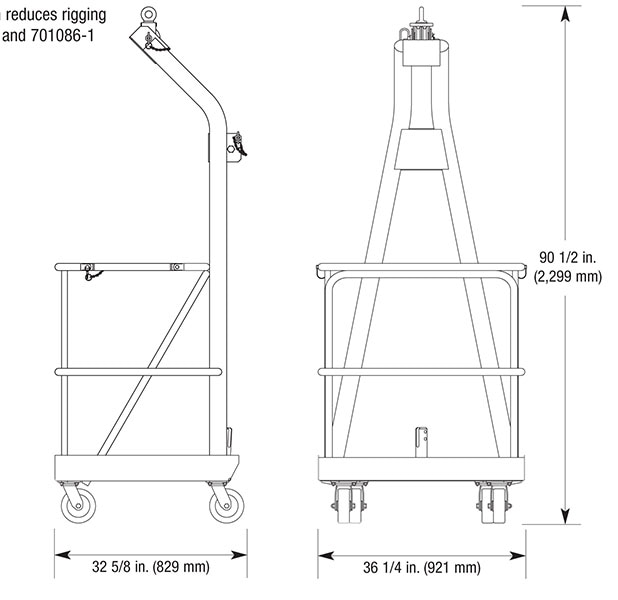

| Part Number | Product Dimensions | Product Dimensions (with 2ft Flydecks) |
|---|---|---|
| 701086-1 | 36 x 33 x 91 in 914 x 838 x 2311 mm | 84 x 33 x 91 in 2134 x 838 x 2311 mm |
Additional Specifications
- Gross Load Capacity: 1000 lb (453.6 kg)
- Max Live Load: 750 lb (340.2 kg)
- Max Live Load with Flydecks: 500lb (226.8 kg)
- Unit Weight Without Flydecks: 150 lb (68 kg)
- Unit Weight With Flydecks: 250 lb (113.4 kg)
Key Features
- Rugged steel construction
- Pin-style removal of sheave to speed wire rope reeving
- Lifting/transfer lug acts as transfer rigging point; allows for crane lifting or horizontal travel with SA-1002 Transfer Chain
- Casters included as standard equipment
