Fixed Modular Platform—Accessories
Accessories are available for the fixed modular platform include a single line kit, which allows a platform section up to 7 ft (combined with endgates) to be used as a single line work cage. Also available are casters and wheel assemblies to provide mobility when a platform is landed.
Specifications
| Part Number | Item | Weight |
|---|---|---|
| 701184-1 | Single Line Kit | 54 lb (24.5 kg) |
| 4986-01 | Caster | 5.4 lb (2.6 kg) |

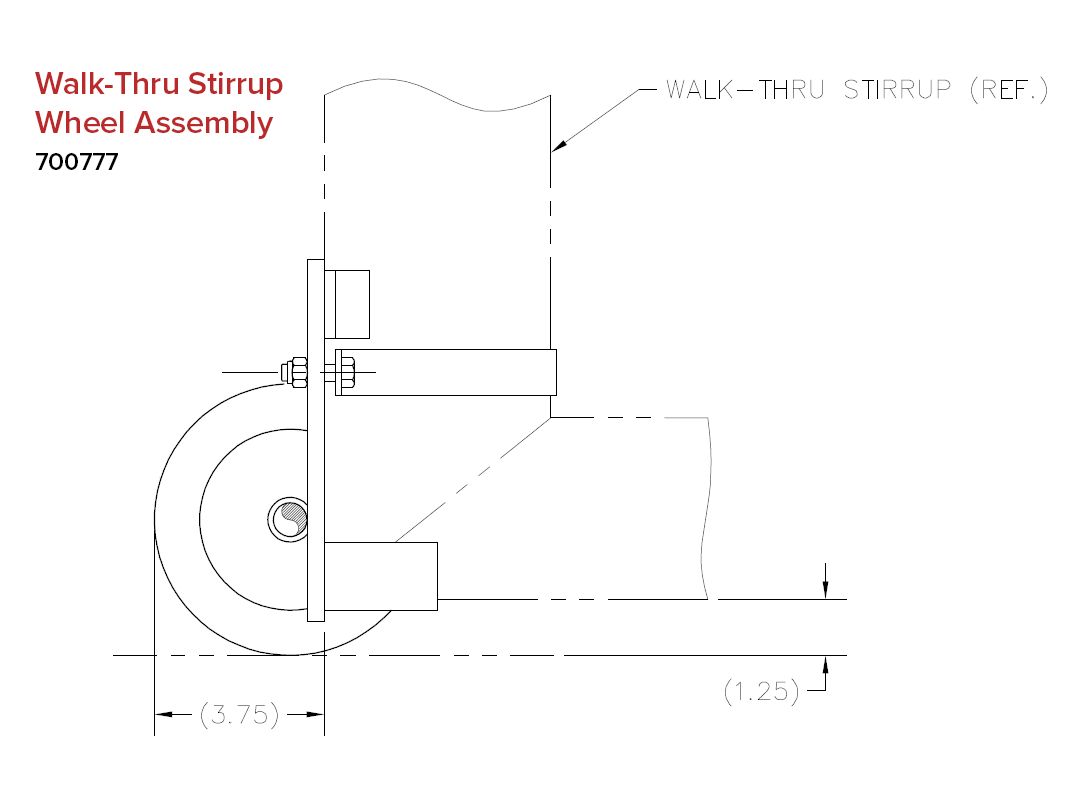

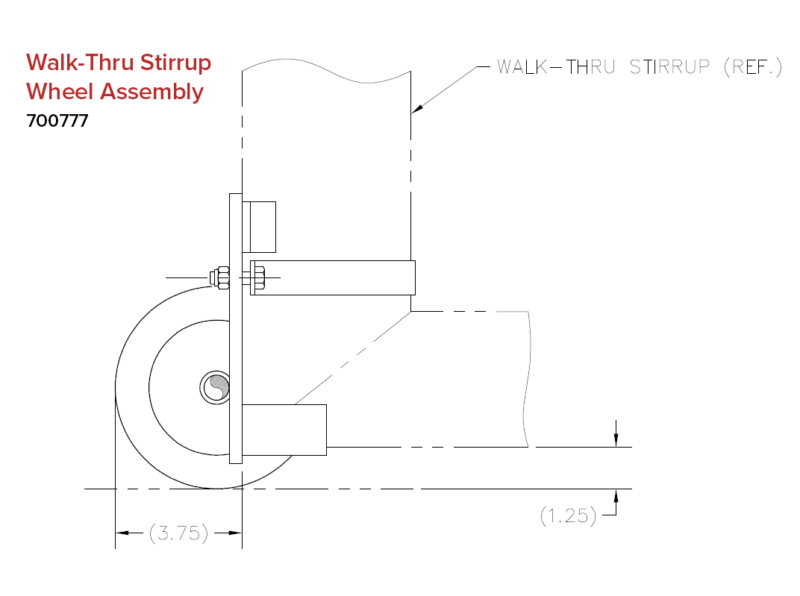

| 700777-1 | Walk Thru Stirrup Wheel Assembly | 12 lb (5.4 kg) |

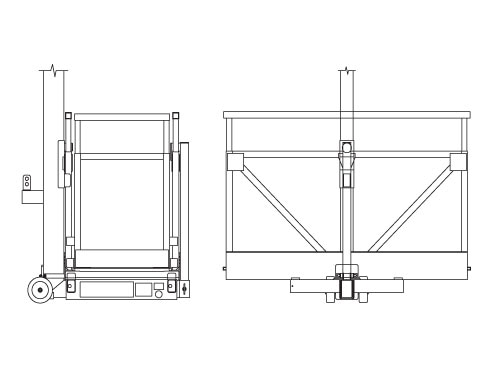

Note: The Single Line Kit (701184-1) consists of a top and bottom support and a wheel assembly. This kit makes a 3, 5 or 7 ft (1, 1.5 or 2.1 m) section into a 750 lbs. (340.2 kg) maximum load single line work cage, using endgates to finish the cage.
