Wall Rollers
- Attaches to top rail, midrail or corner upright post.
- Designed for use against relatively fragile structures, soft rubber rollers distribute weight evenly to prevent structural damage.
Specifications
| Part Number | Item | Function | Compatible With | Extension | Weight | Notes |
|---|---|---|---|---|---|---|
| 701037-1 | Face Roller/Clamp Assembly | Foam Roller, For use on Smooth Surfaces, | 700903-1 Collapsible Aluminum Work Cage | 11-18 in. from base of the work cage (279-457 mm) | 15 lb (6.8 kg) | Includes Roller Assembly and four clamps |
| SA-1090 | Adjustable Wall Roller with Non-Conductive Rubber Wheel | Rubber Wheel, For use on rough surfaces. Allows operator to adjust the distance between the rollers and the stage, as well as the distance between the rollers | Modular Platform, ST-17, ST-180, ST-19, 701086-1 Steel Work Cage | 48 in. (1,219 mm) | 10 lb (4.5 kg) | Set includes: two rollers and four rail clamps |

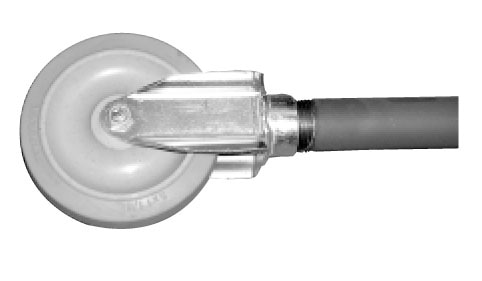

| SA-1035 | Philly Wall Roller | Polyurethane caster-style wheel, for use on rough surfaces. Attaches to any side of basket or work cage | ST-17, ST-180, ST-19, 701086-1 Steel Work Cage | 5 1/2 in. (140 mm) | 10 lb (4.5 kg) | Set includes two philly wall rollers with attachment hardware |

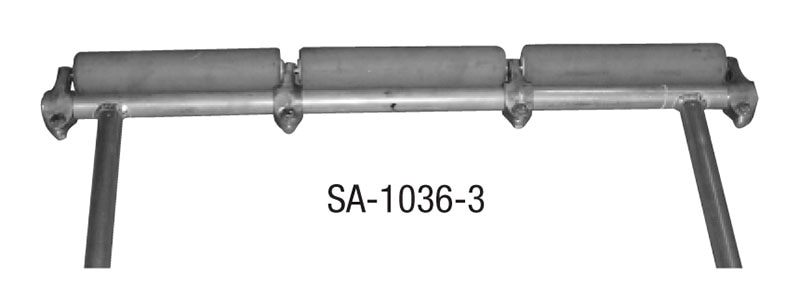

| SA-1036-3 | 36″ Wide Face Roller Assembly | Foam Roller, For use on Smooth Surfaces | Modular Platform, ST-17, ST-180, ST-19, 701086-1 Steel Work Cage | 5 to 18 in. (127 to 457 mm) | 17 lb (7.7 kg) | 3 Roller Assembly Set includes two roller brackets, four rail clamps and rollers |
| SA-1036-4 | 48″ Wide Face Roller Assembly | Foam Roller, For use on Smooth Surfaces | Modular Platform, ST-17, ST-180, ST-19, 701086-1 Steel Work Cage | 5 to 18 in. (127 to 457 mm) | 21 lb (9.5 kg) | 4 Roller Assembly Set includes two roller brackets, four rail clamps and rollers |

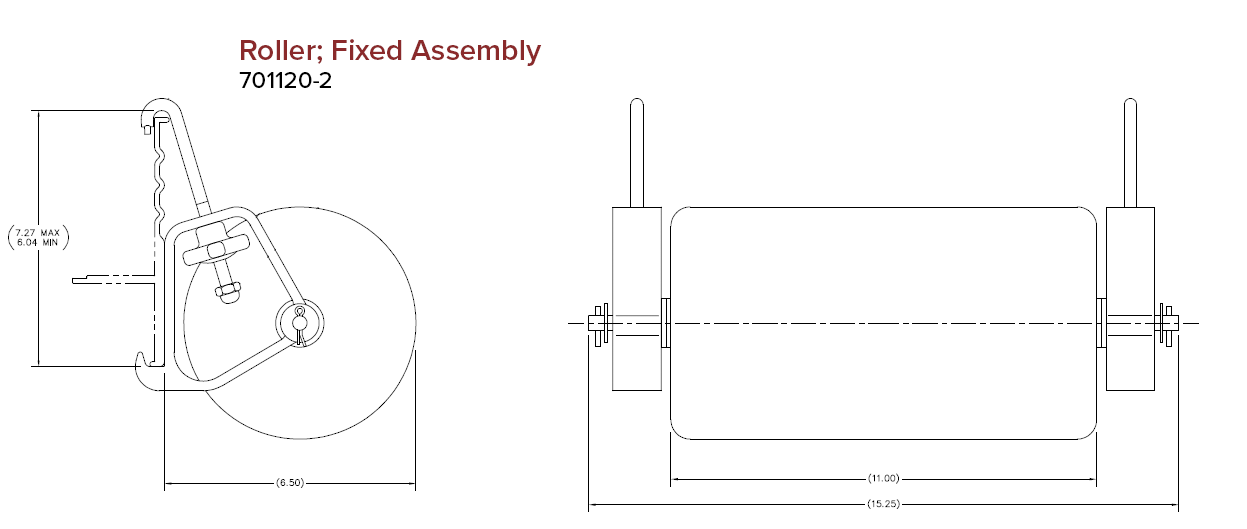

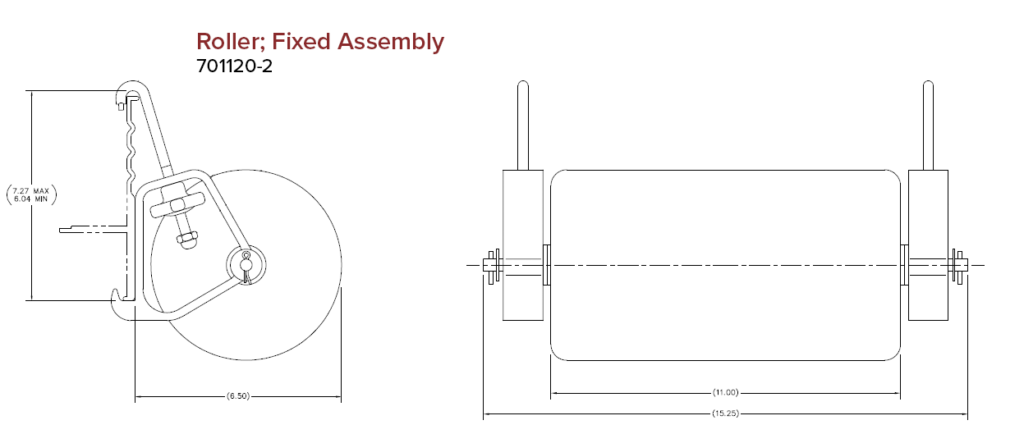

| 701120-2 | Fixed Face Roller Assembly | Foam Roller, For use on Smooth Surfaces | Modular Platform | 6 -1/2 in. (152 mm) | 5 lb (2.3 kg) | |

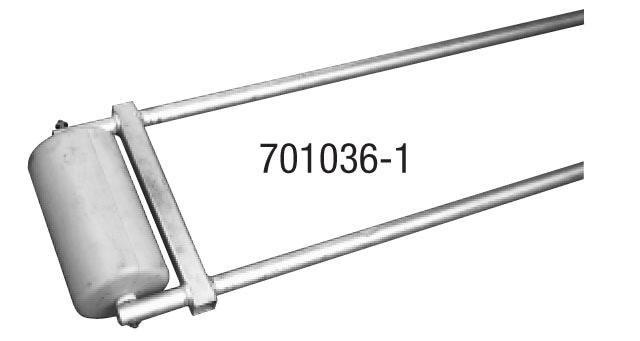

| 701036-1 | Foam Roller Assembly | Foam Roller, For use on Smooth Surfaces | Modular Platform, ST-17, ST-180, ST-19, 701086-1 Steel Work Cage | 9-20 in. (229-508 mm) | 12 lb (5.4 kg) | |
| 706067-1 | Fixed Face Roller | Foam Roller, For use on Smooth Surfaces | Modular Platform | 5-1/2 in. (140mm) | 3.9 lb (1.8 kg) |
