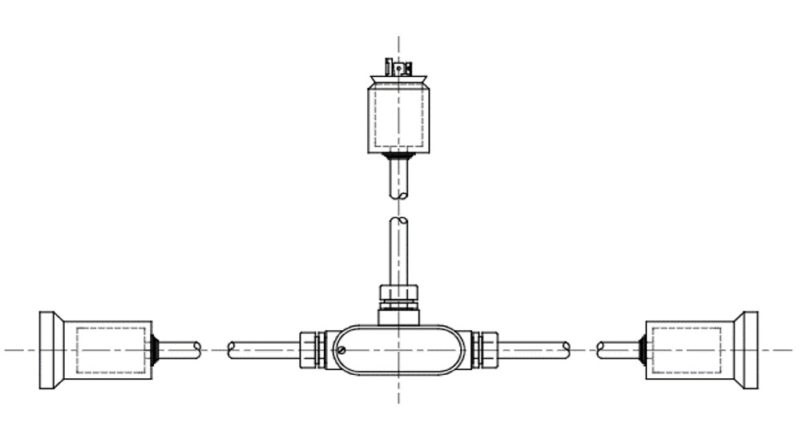

Power Cords & Yokes
Power cords, yokes and adapters are available for all our hoists, including traction, drum and material hoists. Multiple lengths and voltages are available.
Be sure to review the tables carefully to ensure you have the correct product for your hoist model and needs.
Not sure what you need? Contact your Spider representative for assistance.
Specifications
| Part Number1 | Description | Type | Phase | For Use With |
|---|---|---|---|---|
| 3663-06 | YOKE;60 FT; 10/3 250V;20A | Yoke | 1 | All SC1000 series hoists as well as the discontinued SC30, SC40, Zmac and Astro model hoists. |
| 704693-1 | YOKE EXTENSION; 20FT; 10/3 250V;20A | Yoke | 1 | |
| 704583-1 | 30A to 20A PIGTAIL CONVERTER | Adapter | 1 | |
| 8-0404 | 3PH TO 1PH PIGTAIL CONVERTER | Adapter | 1 | |
| 3660-XXX | DROP CORD;10/3 250V;20A | Power Cord | 1 | |
| 710578-1 | PHASE REVERSING PIGTAIL | Adapter | 3 | |
| 3663-03 | YOKE;60 FT; 10/4 250V;30A | Yoke | 3 | |
| 704694-1 | YOKE EXTENSION; 20FT; 10/4 250V;30A | Yoke | 3 | |
| 3662-XXX | DROP CORD;10/4 250V;30A | Power Cord | 3 | |
| 709481-XXX | 30A TO 20A; 250V PIGTAIL CONVERTER | Power Cord | 3 | UpPro P1009 & P1020 Allows Drop Cord to be connected |
| 709481-XXX | DROP CORD; 10/5 480V; 20A | Power Cord | 3 | UpPro P2314 & P2514 |
| 710455-1 | PIGTAIL;10 FT; 10/4;250V;30A | Power Cord | 1 | Note: Use these pieces together to form a 120Volt GFI Outlet for power tools on stage |
| 710452-1 | YOKE;10/4 TO 10/3;40FT W/GFCI | Yoke | 1 | |
| 710453-1 | YOKE;10/4 TO 10/3;60FT W/GFCI | Yoke | 1 | |
| 710454-1 | DROP CORD;250FT; 10/3; 250V;30A; | Power Cord | 1 |
Specifications
| Part Number1 | Description | Type | For Use With |
|---|---|---|---|
| 103020 | 115V TO 125V ADAPTER | Adapter | 115 V Drum Hoists: ST-18, ST-19 110 V Material Hoists: 510002 |
| 3661-XXX | DROP CORD;10/3 125V;20A | Power Cord | 115 V Drum Hoists: ST-18, ST-19 110 V Material Hoists: 510002 |
| 3663-06 | YOKE; 10/3; 250V;20A | Yoke | 220 V Drum Hoists: ST-18, ST-18-1, ST-19, ST-26 |
| 704693-1 | YOKE EXTENSION; 20FT; 10/3 250V;20A | Yoke | 220 V Drum Hoists: ST-18, ST-18-1, ST-19, ST-26 |
| 704583-1 | 1PH; 30A TO 20A PIGTAIL CONVERTER | Adapter | 220 V Drum Hoists: ST-18, ST-18-1, ST-19, ST-26 220 V Material Hoists: 510003, 510007 |
| 8-0404 | 3PH TO 1PH PIGTAIL CONVERTER | Adapter | 220 V Drum Hoists: ST-18, ST-18-1, ST-19, ST-26 220 V Material Hoists: 510003, 510007 |
| 3660-XXX | DROP CORD;10/3 250V;20A | Power Cord | 220 V Drum Hoists: ST-18, ST-18-1, ST-19, ST-26 220 V Material Hoists: 510003, 510007 |
| 709481-1 | 250V; 30A TO 20A PIGTAIL CONVERTER | Adapter | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 704710-1 | 20A to 30A PIGTAIL CONVERTER | Adapter | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 710578-1 | PHASE REVERSING PIGTAIL | Adapter | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 3663-03 | YOKE;60 FT; 10/4 250V;30A | Yoke | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 704694-1 | YOKE EXTENSION; 20FT; 10/4 250V;30A | Yoke | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 3662-XXX | DROP CORD;10/4 250V;30A | Power Cord | 220 V Drum Hoists: ST-180-4/ST-180-5 |
| 3664-XXX | DROP CORD;8/4 250V;30A | Power Cord | 220 V Material Hoists: 707919-1 |
| 710455-1 | PIGTAIL;10 FT; 10/4;250V;30A | Power Cord | 220 V Material Hoists: 707918-1 & 707919-1 Note: Use these pieces together to form a 120Volt GFI Outlet for power tools on Stage |
| 710452-1 | YOKE;10/4 TO 10/3;40FT W/GFCI | Yoke | |
| 710453-1 | YOKE;10/4 TO 10/3;60FT W/GFCI | Yoke | |
| 710454-1 | DROP CORD;250FT; 10/3; 250V;30A; | Power Cord |
