Beta Max Material Hoists
Spider is an exclusive distribution partner for Beta Max material hoists. We rent, sell, and service Beta Max portable wire rope material hoists & accessories in our 25 locations.
Beta Max portable hoists make accessing confined and hard-to-reach spaces easy. Control your work flow, schedule and budget with the most efficient and safe material delivery to any work level.
- Hoist of choice for medium duty projects
- Largest 120V Beta Max hoist on the market
- Installs easily on existing scaffold systems, work platforms, I-beams and rooftop mounting options
- Flexible I-beam mounting option works with and configures to each unique jobsite
- Maximum safety and efficient alternative to rope and pulley systems, cranes and forklifts
- Long lasting performance with minimum maintenance required
Choose the model that meets your project needs.
Specifications
| Part Number | Description | Line Set Up | Lift Capacity | Lift Speed | Lift Height | Voltage AC | Current | Phase | Horsepower |
|---|---|---|---|---|---|---|---|---|---|

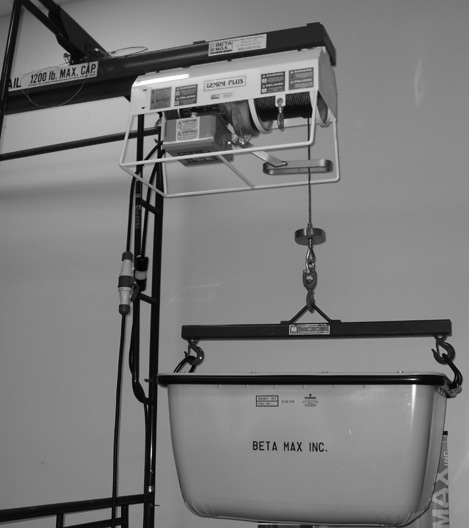

| 510002 | Gemini Plus | Single Line | 272.2 kg | 80 fpm (24.4 mpm) | 220 ft (67.1 m) | 110 V 220 V | 12 A at 220 V 20 A at 110 V | 1 | 1.5 hp |
| 510003 | Gemini Plus | Double Line | 544.3 kg | 40 fpm (12.2 mpm) | 110 ft (33.5 m) | 110 V 220 V | 12 A at 220 V 20 A at 110 V | 1 | 1.5 hp |

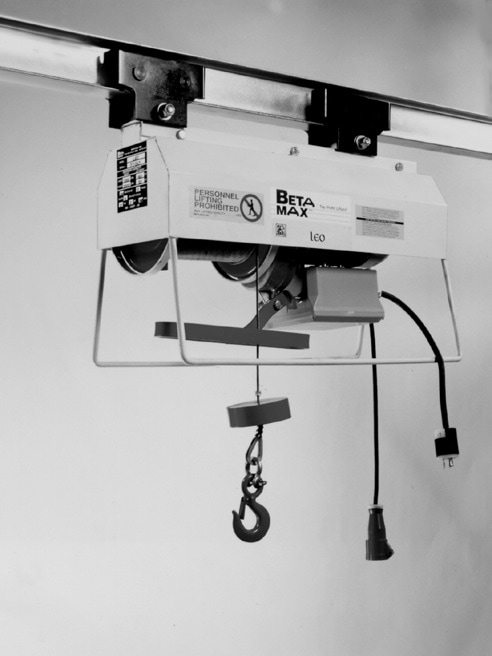

| 510004 | LEO | Single Line | 1,000 lb (453.6 kg) | 80 fpm (24.4 mpm) | 220 ft (67.1 m) | 220 V | 13 A | 1 | 2 hp |
| Double Line | 2,000 lb (907.2 kg) | 40 fpm (12.2 mpm) | 110 ft (33.5 m) | ||||||
| 707918-1 | LEO XXL | Single Line | 1,000 lb (453.6 kg) | 80 fpm (24.4 mpm) | 400 ft (121.9 m) | 220 V | 15 A | 3 | 3.3 hp |
| Double Line | 2,000 lb (907.2 kg) | 40 fpm (12.2 mpm) | 200 ft (61 m) | ||||||
| 707919-1 | LEO XXL VFD (Wired) | Single Line | 1,000 lb (453.6 kg) | 80 fpm (24.4 mpm) | 400 ft (121.9 m) | 230 V | 13 A | 3 | ? |
| Double Line | 2,000 lb (907.2 kg) | 40 fpm (12.2 mpm) | 200 ft (61 m) | ||||||

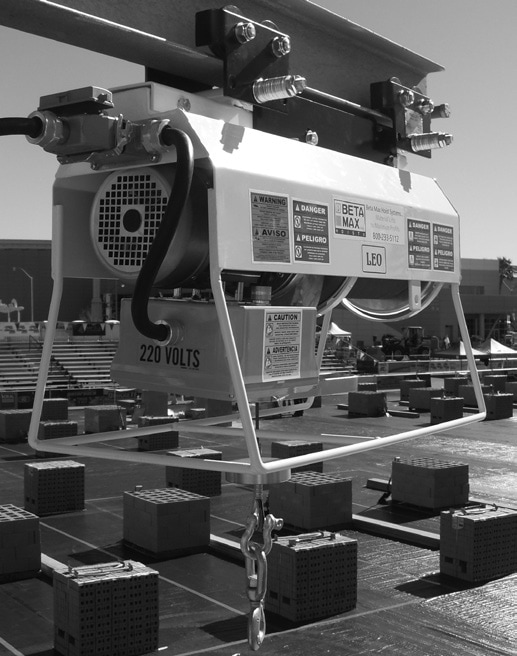

| 707939-1 | LEO VFD (Wired) | Single Line | 1,000 lb (453.6 kg) | 80 fpm (24.4 mpm) | 220 ft (67.1 m) | 230 V | 13 A | 1/3 | ? |
| Double Line | 2,000 lb (907.2 kg) | 40 fpm (12.2 mpm) | 110 ft (33.5 m) | ||||||
| 707940-1 | LEO XXL VFD (Wireless) | Single Line | 1,000 lb (453.6 kg) | 80 fpm (24.4 mpm) | 400 ft (121.9 m) | 230 V | 13 A | 1/3 | ? |
| Double Line | 2,000 lb (907.2 kg) | 40 fpm (12.2 mpm) | 200 ft (61 m) | ||||||

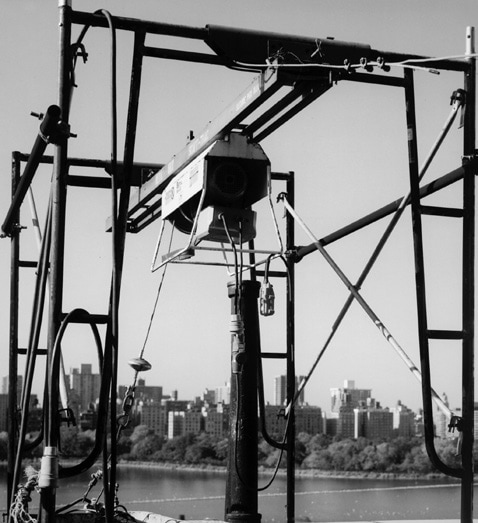

| 510007 | New Yorker Beta Max | Single Line | 600 lb (272.2 kg) | 80 fpm (24.4 mpm) | 350 ft (106.7 m) | 220 V | 13 A | 1 | 1.5 hp |

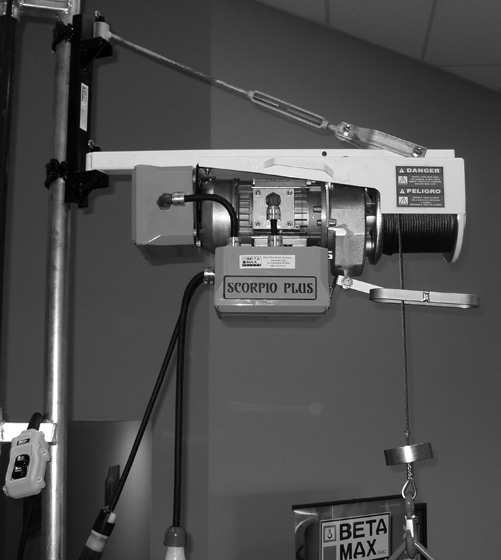

| 707917-1 | Scorpio XL | Single Line | 400 lb (181.4 kg) | 80 fpm (24.4 mpm) | 160 ft (48.8 m) for Scorpio Plus XL |80 ft (24.4 m) for Scorpio Plus | 110/120 V | 15 A | 1 | 1 hp |
Talk to a specialist
"*" indicates required fields
Mounting Options
Trestle Monorail
- Perfect for heavy-duty projects featuring a 1,200 lb (544.3 kg) and 2,000 lb (907.2 kg) capacity
- Trestle Monorail is a free-standing A-frame that is ideal for jobsites where scaffolding is not available
- Installs easily between floors and rooftops with no special tools required
- Customize this mounting system for use on mast climbing platforms
- Counterweight clamp assembly installs easily, accommodates standard 50 lb (22.7 kg) staging weights and provides complete system counterbalance
Scaff-Trac
- Complete scaffold lifting solution engineered for easy installation every time. No special tools required.
- Optional extensions provide unlimited system length for ease of material delivery through multiple scaffold bays
- Materials are always within easy reach with a 3.5 ft (1.1 m) cantilever for 7 ft (2.1 m) spaced scaffolding and 2.5 ft (0.8 m) cantilever on 8 ft (2.4 m) spaced scaffolding
- Customize this mounting system for use on mast climbing platforms
- Counterweight clamp assembly installs easily, accommodates standard 50 lb (22.7 kg) staging weights and provides complete system counterbalance
- Special saddles are available for mounting to continuous climbing scaffolding
- 11.5 ft (3.5 m) long monorail gives you the ability to roll materials inside scaffolding bay for added accessibility of material delivery
I-Beam Trolley
- Material delivery made easy with I-beam trolley that moves along the full length of the beam
- Customize forward and backward cantilever to your unique jobsite requirements
- Adjustable flange widths of 2.66 ft (0.8 m) – 5.25 ft (1.6 m) allow trolley to attach to standard I-beams, allowing for easy installation on any jobsite
- Perfect for heavy duty projects
- Suspension brackets allow you to install your own I-beam to existing scaffolding anywhere on the jobsite
- Counterweight clamp assembly helps balance overall weight distribution, installs easily and accommodates your weights
Fixed I-Beam
- Fixed I-beam option firmly holds the hoist stationery. Perfect for moving materials in confined spaces like the interior of scaffolding or an elevator shaft.
- Fixed I-beam top is compatible with I-beams with a flange width of 2.66 ft (0.8 m) – 5.25 ft (1.6 m).
Vertical Post Mount
- Perfect for lightweight, smaller projects in confined spaces
Sliding trolley top for the Beta Lite hoist provides 5 ft (1.5 m) cantilever for greater reach off of the scaffold frame. - Material delivery made easy with mount engineered to pivot 180° allowing for convenient unloading at work level.
- Installs easily on existing standard scaffolding with no special tools required
- Counterweight clamp assembly helps balance overall weight distribution, installs easily and accommodates your weights.
Note: Vertical post mount is only compatible with the Scorpio XL (707917-1).
