Fold-Up Work Cages

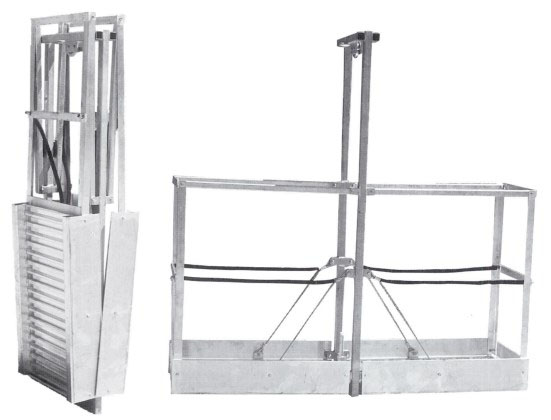

6 ft (1.8 m) Internal Universal Mount Work Cage

  • Steel and aluminum construction for dual benefits of strength and lighter weight.
  • Accepts most hoists with standard single bar pick-ups, including the current SC1000 series hoists as well as the discontinued Zmac/1000®, SC40 and SC30 hoists. Also compatible with most other brands of traction hoist.

Specifications

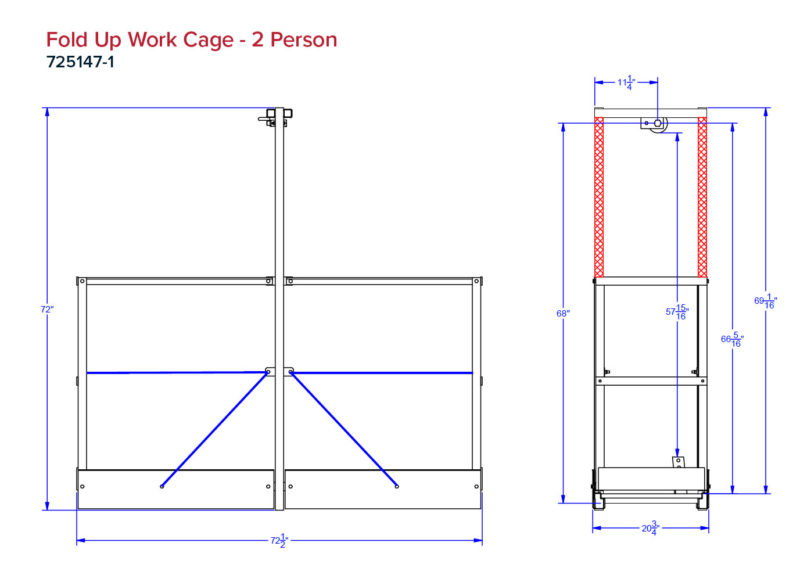

Part NumberWeightFully Expanded DimensionsCollapsed DimensionsMountMount
Dimensions
725147-1126 lb
(57.2 kg)
72 x 20 3/4 x 72 1/2 in.
(1829 x 527 x 1842 mm)
13 3/4 x 20 3/4 x 75 3/4 in.
(349 x 527 x 1924 mm)
Internal6 ft
(1.83 m)

Additional Specifications

  • Gross Load Capacity: 1000 lb (453.6 kg)
  • Maximum Live Load: 500lb (226.8 kg)

Key Features

  • Lightweight
  • Compact
  • Easy assembly
  • Powder-coated to prevent rust and lengthen product life
  • Folds up for easy storage
  • Mesh floors allow water to escape rather than collect in the cage-eliminates possibility of warping and reduces potential electrical problems
  • Includes roller bumpers and attached tail boards that do not need to be disassembled before storage
  • Passes through a 24 in (610 mm) diameter opening or through a 13 x 20 in (330 x 508 mm) rectangular opening
  • The toe boards are permanently attached.
  • The gooseneck has a roller system for the wire rope guide.
  • The rollers are attached with mounted brackets instead of U-bolts.
