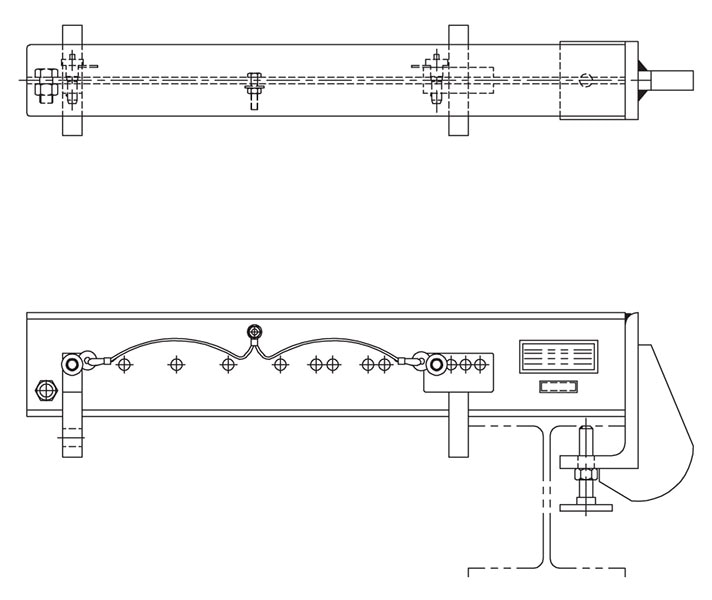

Top Flange Truss Outriggers

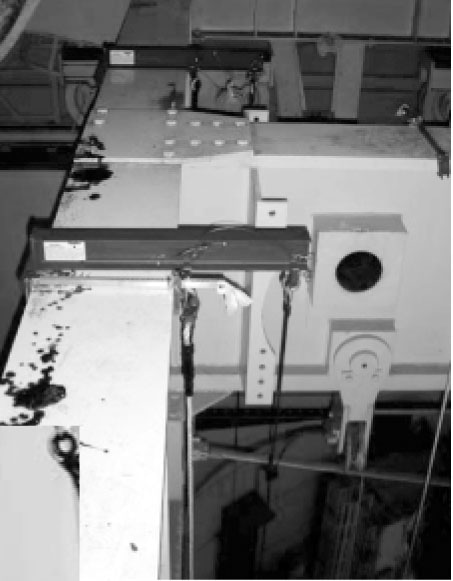

The truss outriggers are designed for rigging on large, horizontal I-beam trusses or structural flanged beams. They are especially useful when the suspension wire rope needs to be held a short distance away from the truss.
Fits beams with flange width of 6 in (152 mm) or larger.
Specifications
| Part Number | Weight | Load Capacity | Minimum Flange | Maximum Flange | Minimum Outreach | Maximum Outreach |
|---|---|---|---|---|---|---|
| SA-4474 | 28 lb (12.7 kg) | 1,000 lb (453.6 kg) | 6 in. (152 mm) | 12 in. (305 mm) | 3 in.1 (76 mm) | 15.2 in.1 (387 mm) |
| 5019-01 | 28 lb (12.7 kg) | 1,500 lb (567 kg) | 6 5/8 in. (168 mm) | 13 1/8 in. (333 mm) | 16 3/8 in.2 (416 mm) | 25 3/8 in.2 (658 mm) |
2 At 6 5/8 in. flange size
Notes
- SA-4474: Theoretically, this part can be used with I-beams up to 18 1/2 in. (470 mm) wide as long as the flange thickness is less than 1 1/2 in. (38 mm). This would give you an outreach measured from the outer edge of the I-beam of 2.7 in. (69 mm).
- 5019-01: At the maximum flange width of 13 1/8 in. (333 mm), the minimum outreach is 9 7/8 in. (251 mm) and the maximum outreach of 18 7/8 in. (479 mm) measured from the outer edge of the I-beam.
- Want to retrofit an SA-4474? Order 702692-1
Key Features
- Heavy duty powder-coated steel and aluminum construction
- No tools required for installation
- Extensive labels ensure proper installation
- Built by Spider in the USA
