Splice Tubes

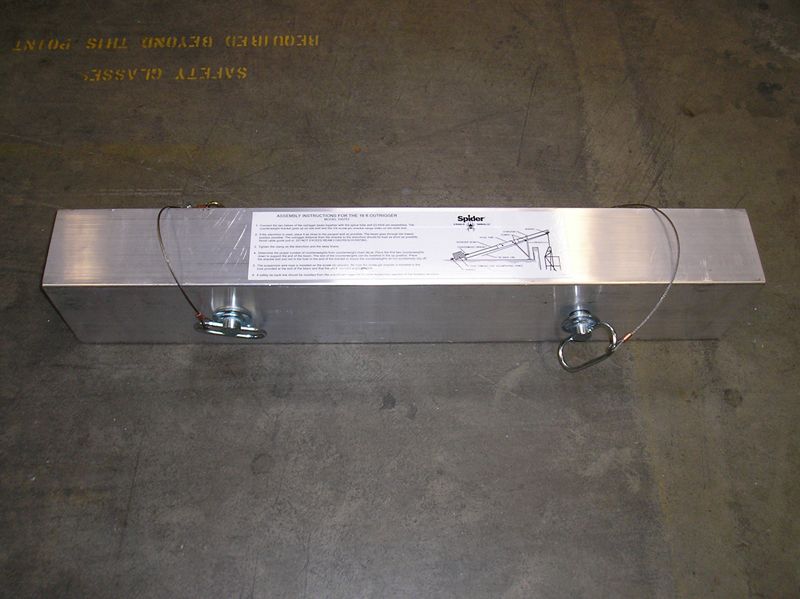

Spider pioneered the 3 ft (0.9 m) splice tube and now makes a 9 ft (2.7 m) splice tube to replace cumbersome splice plates held in place with nuts and bolts. The time saving splice tubes can be used on 6 x 4 and 5 x 5 H or I beams.


Part NumberWeightConstructionLengthReplaces Splice Plates on

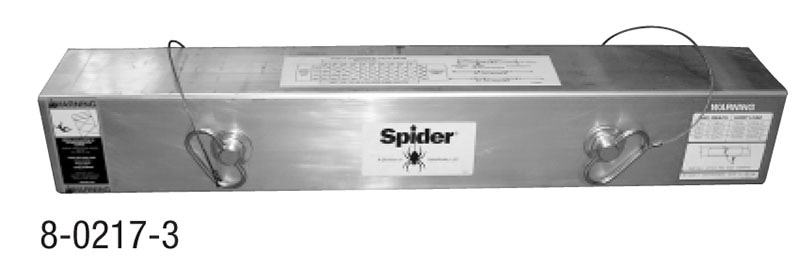

8-0217-313 lb (5.9 kg)Aluminum Extrusion3 ft (0.9 m)5 x 5 Beam Outriggers sold by others
8-0217-439 lb (17.7 kg)Aluminum Extrusion9 ft (2.7 m)5 x 5 Beam Outriggers sold by others

Key Features

  • Labels include load ratings and counterweight chart
  • No tools needed for assembly
  • Simple locking pin design makes connecting fast and easy.
  • Saves 30 minutes of rigging installation time per swing stage
  • Eliminates rework of misaligned bolt patterns
  • Built by Spider in the USA

Note: Contact your Spider representative for instructions on using this product.
