Beam Tie-Down Systems

An engineered connection designed to replace all sandwich or fish plates, gantries, frames and counterweights when attaching a beam directly to structural steel.

Note: Tieback required.


Part NumberWeightLoad/Capacity1Outreach (A)Backspan (B)
702096-126 lb (11.8 kg)4,000 lb (1,814.4 kg)Per outrigger labelMinimum is 1.5 times the outreach
1 Clamping load with 1500 lbs. (680.4 kg) hoist

Key Features

  • Accommodates a wide range of beam flange widths
  • Clamps outrigger beams to structural steel
  • Rated for use with 1,500 lb (680.4 kg) hoists
  • Built by Spider in the USA

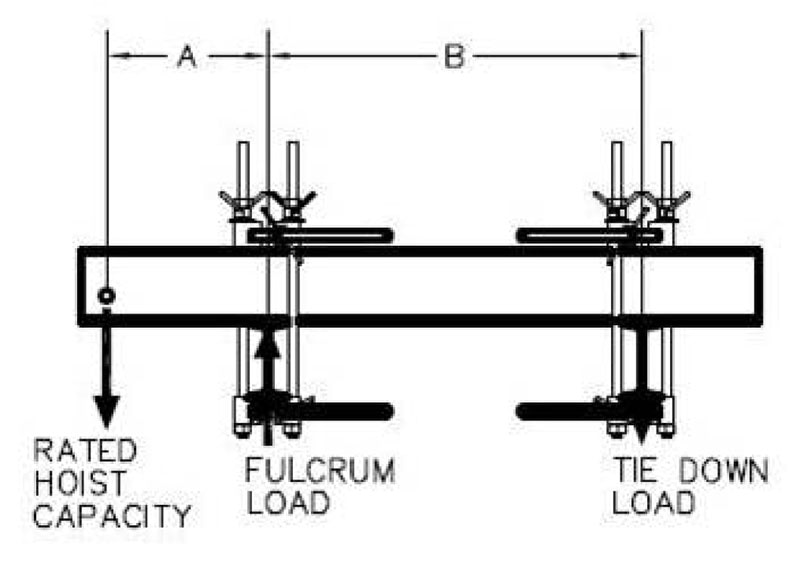

Beam Tie-Down System Diagram
