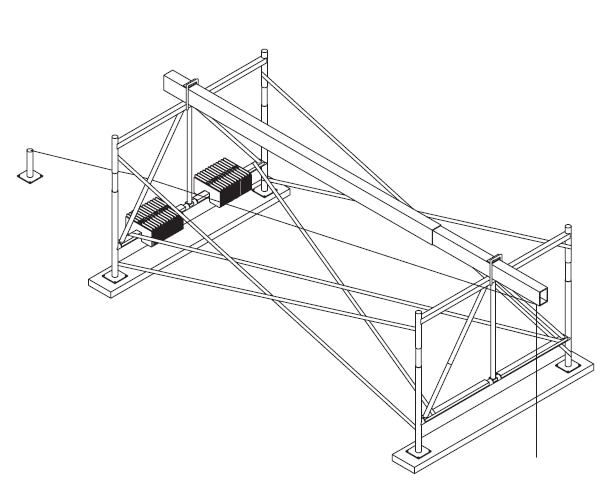

Outrigger Beam Support Frames & Accessories
Heavy duty steel frames stack in 4 ft 2 in. (1.3 m) increments for high parapet wall clearance with 8-0217, 8-0217 series, 700809-1 and 700819-1 beams.
Outreach/Capacity varies with frame spacing.
- Frame configurations available with base plates or casters
- Loading available for 1,000, 1,250 and 1,500 lb. (453.6, 567 and 680.4 kg) capacities depending on frame spacing and beam length
- Can be stacked multiple tiers high when completed by a qualified person
- Extensive assembly instructions cover frame sizing, beam outreach (cantilever), suspended load available and allowable leg loads
Specifications
| Part Number | Description | Weight | How Used |
|---|---|---|---|
| A-11393 | Frame | 75 lb (34 kg) | 2 per tower |
| A-11395 | Cross Brace 12 x 4 | 20 lb (9.1 kg) | 1 per tower |
| A-11396 | Cross Brace 12 x 3 | 18 lb (8.2 kg) | 2 per tower |
| A-11397 | Screwjack base w/ base plate | 10 lb (4.5 kg) | For stacking frames 2 tall |
| A-11394 | Caster | 16 lb (7.3 kg) | For rolling towers |
| A-11398 | Coupling Pin | 1 lb. (0.5 kg) | For stacking frames 2 tall |
| A-11835 | 12 in. (305 mm) Caster | 24 lb (10.9 kg) | For rolling towers |
| P-00248 | Assembly instructions – for base plate and screwjack applications | ||
| P-00249 | Assembly instructions – for caster applications | ||
Additional Specifications
- Load/Capacity: 1,000-1,500 lb (453.6-680.4 kg)
- Load/Capacity of Casters:
- A-11394: 750 lb (340.2 kg) max
- A-11835: 1,200 lb (544.3 kg) max
- Outreach: Dependent on which beam is used
- Construction: Steel
