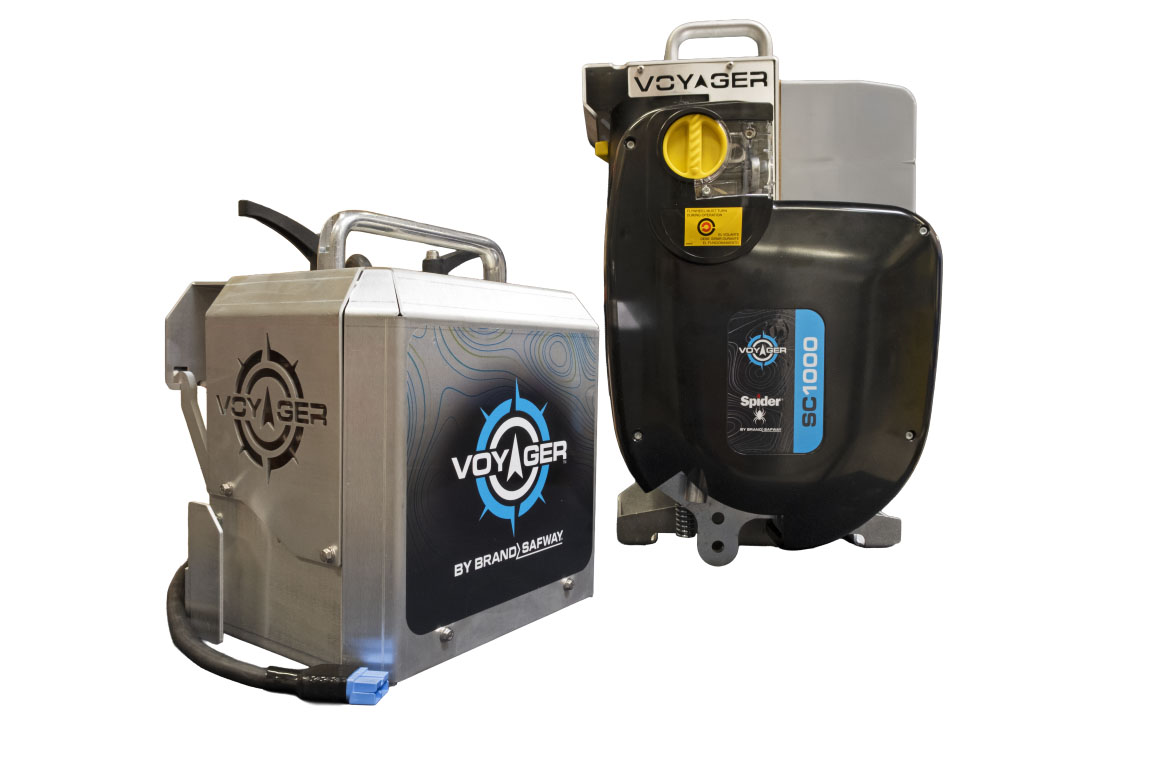

SC1000 Voyager® Battery-Powered Hoist
OWN YOUR POWER
With the Spider SC1000 Voyager battery-powered hoist from BrandSafway, you can GO ANYWHERE, any time. No need to run power cables, call an electrician or rent a generator. No productivity loss or extra service calls due to unreliable power. The SC1000 Voyager will change the way you work.
Specifications
| Part Number | Slack Rope | Overload | Top Limit |
|---|---|---|---|
| 724183-2 |  | | |
| 724184-2 | | ||
| 724185-2 | | |
SC1000 Voyager Accessories
| Part Number | Description |
|---|---|

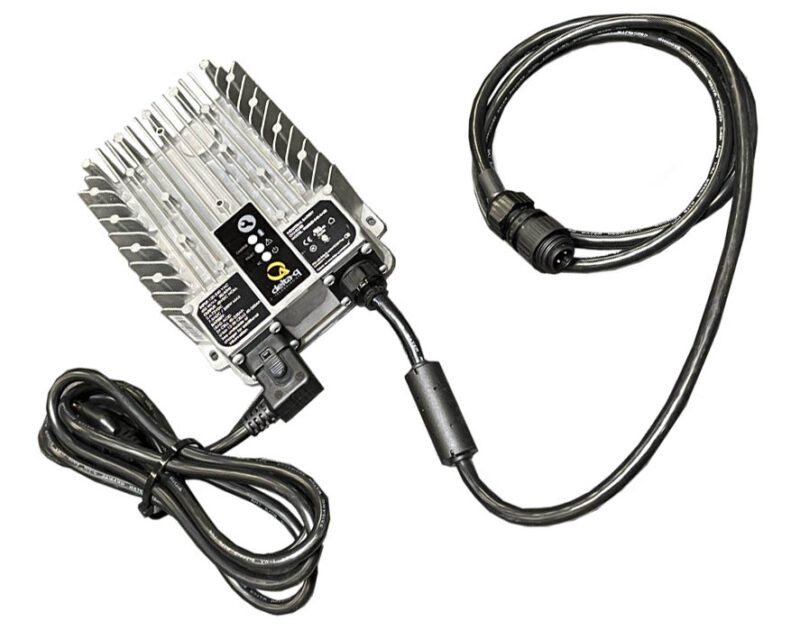

| 725860-2 | Voyager Battery Charger |
| 726180-1 | Voyager Battery |
Additional Specifications
- Working Load Limit: 1000 lb (454 kg)
- Voltage (charger): 110/220V
- Dimensions:
- Hoist: 14 x 12 x 24 in. (356 x 305 x 610 mm)
- Battery: 13 x 11 x 14.15 in. (330 x 279 x 359.4 mm)
- Weight:
- Hoist: 127 lb (57.6 kg)
- Battery: 38 lb (17.2 kg)
- Travel Speed: 35 fpm (10.7 mpm)
- Hoist Construction: Aluminum, Steel and Engineered Polymer
- Wire Rope Diameter: 5/16 in, 8 mm or 8.4 mm
- Wire Rope Specification: 5×26, 6×19, or 6×31; IWRC (Independent Wire Rope Core) or FC (Fiber Core); Right Regular Lay, IPS (improved Plow Steel); Preformed; Galvanized or Bright
Note: User must verify that the wire rope meets or exceeds applicable codes for breaking strength safety factor. USA temporary applications require a 6:1 safety ratio.
Talk to a specialist
"*" indicates required fields
Save Time and Money
- Set up a stage and be working in minutes
- Move stage at any time. No relocating power cables
- No loss of productivity due to unreliable power
- Minimized service calls and reduced maintenance
Who will benefit? Jobsites…
- with unstable or inadequate power
- with no available power supply
- with uncommon power (110V, 400V) or requiring a certified electrician to use
- where power cables are inconvenient, difficult to manage, or not allowed by the owner
Hoist Features
Enhanced Capabilities
- Soft start & soft stop
- Quiet operation
- Best-in-class operating temperature range
- Consistent motor speeds regardless of battery charge level
- Display for battery charge and hour meter
Robust & Durable Construction
- Protection plate over motor
- Proven nylon-reinforced polymer traction cover
Ease of Use
- Identical platform compatibility as SC100
- Overload set at 125% of rated load
- Options: top limit switch, slack rope safety (for secondary wire rope)
Battery Features
Superior Jobsite Performance
- 3 hours of total run time (up/down travel combined)
- Recharges in the down direction
Durable Exterior Casing
- Rated to IP67
- Integrated platform hanger bracket
Convenient Charging
- Lithium-ion battery technology
- 5A battery charger included
- Integrated battery management system
- Charges on 110/220V
- Full charge in 5 hours
