Down Under Assemblies

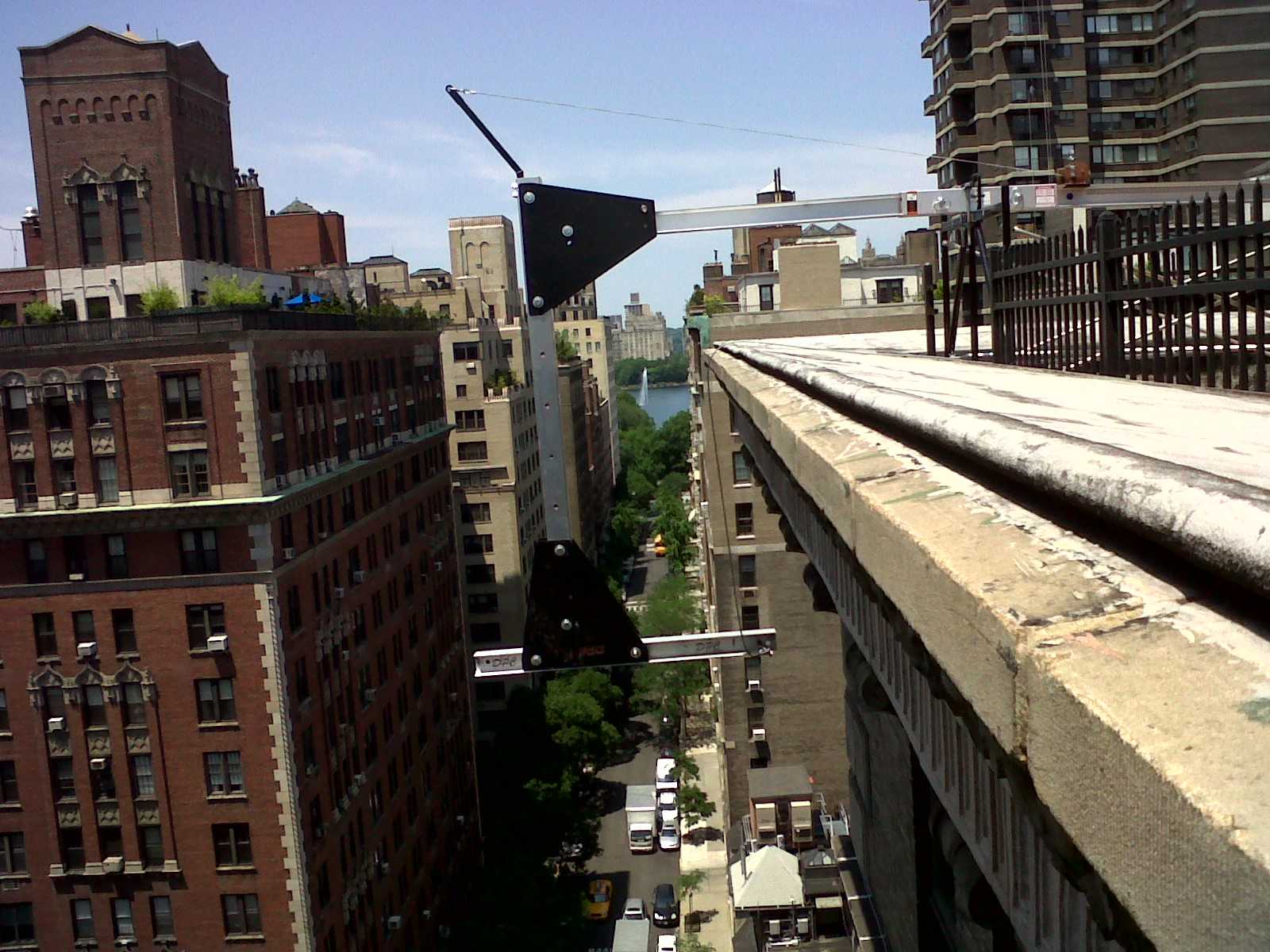

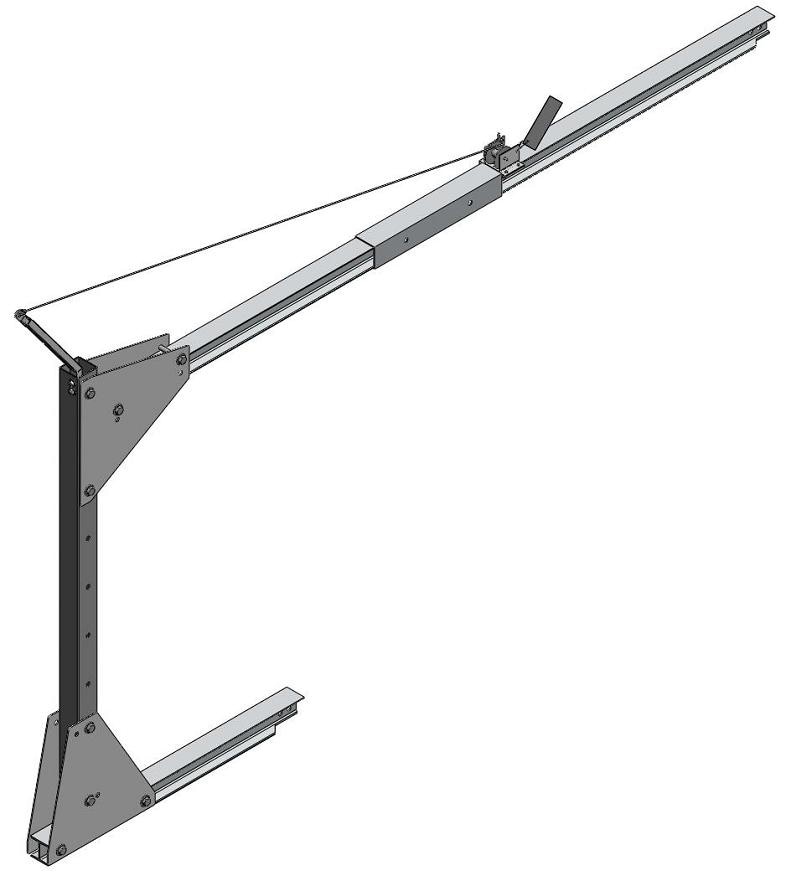

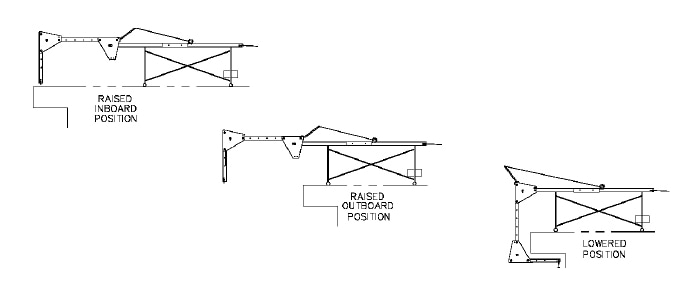

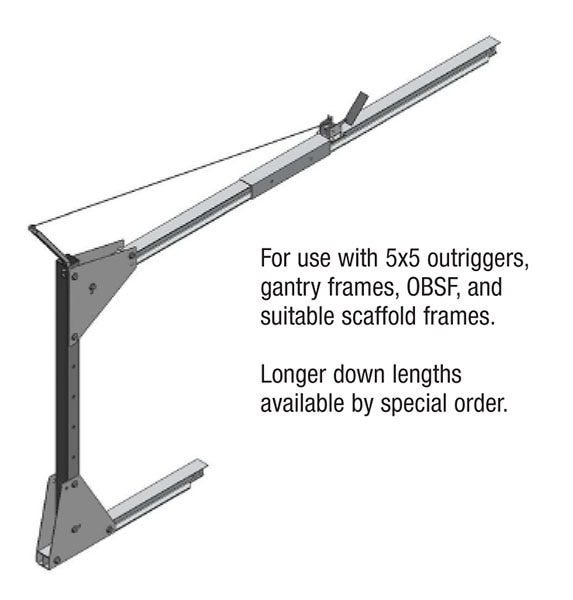

Engineered system to locate the rigging point down a vertical span and under a horizontal distance to access walls under deep cornices, caps or architectural features. Down height available is adjustable from 48 to 96 in., and horizontal (under) reach is 36 in. (914 mm) to 60 in. (1,524 mm) with a 1,500 lbs. (680.4 kg) maximum hoist capacity.
Specifications
| Part Number | Weight | Maximum Hoist Capacity | Down Outreach | Under Outreach |
|---|---|---|---|---|
| 704258-2 | 291 lb (132 kg) | 1,500 lb (680.4 kg) | 48 – 96 in. (1,219 – 2,438 mm) | 36 – 60 in. (914 – 1,524 mm) |
Additional Specifications
- Construction: Aluminum and Steel
- Heaviest Piece: 49 lb (22.2 kg)
- Assembly Includes: 704411-1 Hook
Key Features
- Simple system to set-up and deploy saves time
- Mechanical winch allows for no-power deployment
- Optional drill available to speed installation
- More stable construction improves worker confidence and production rates
- More under reach than competitors: Spider offers 5 ft. (1.5 m) vs. their 4 ft. (1.2 m)
- Step-by-step set-up instruction labels eliminate guesswork
- Engineered and fully tested to meet ANSI SPS 1.1
- Made by Spider in the USA
