Counterweights & Accessories

Counterweight bars are available with varying load capacities.

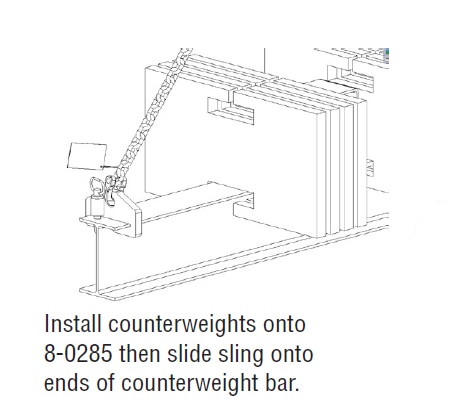

Save significant rigging time and effort by locating the outrigger counterweight bar on a roof deck or structure. Weights slide easily onto the counterweight bar, eliminating the need to lift weights higher than waist level.

Note: Spider offers counterweights in a variety sizes. Please contact your Spider representative for more information.


Part NumberDescriptionLoad/CapacityWeight
8-0285Standard 5×5 counterweight bar2,750 lb
(1,247.4 kg)
42 lb
(19.1 kg)
720029-1Long 5×5 counterweight bar4,100 lb
(1,859.7 kg)
66 lb
(30 kg)
720029-2Long 5×5 counterweight bar with hardware4,100 lb
(1,859.7 kg)
66 lb
(30 kg)

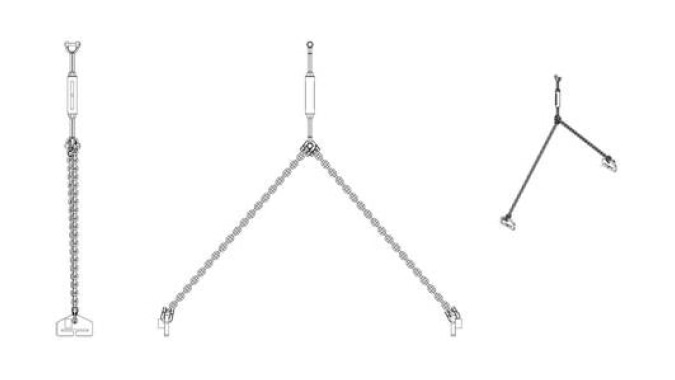

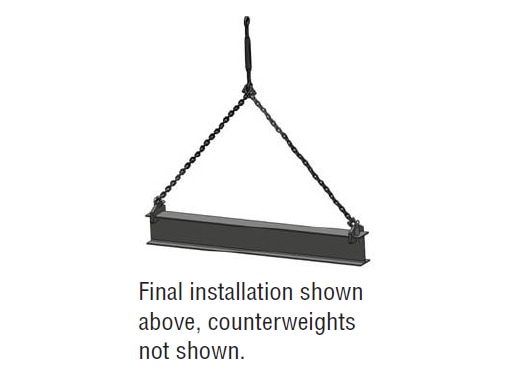

701878-1Counterweight Beam Sling2,500 lb
(1,134 kg)
16 lb
(7.3 kg)

Key Features

  • Heavy duty steel construction
  • No tools required for installation
  • Turnbuckle included
  • Thorough labeling ensures worry-free installation
  • May reduce the number of counterweights needed when using OBSF A-11393 or Outrigger Gantries 701960-1 & 701960-2
  • Built by Spider in the USA
