Cornice Hooks

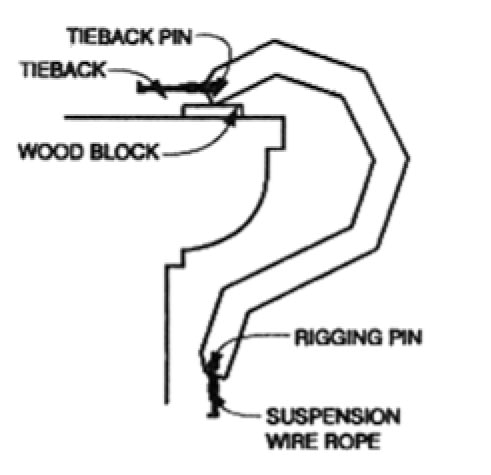

Structurally designed for point loading applications. Extensive product labeling simplifies set-up.

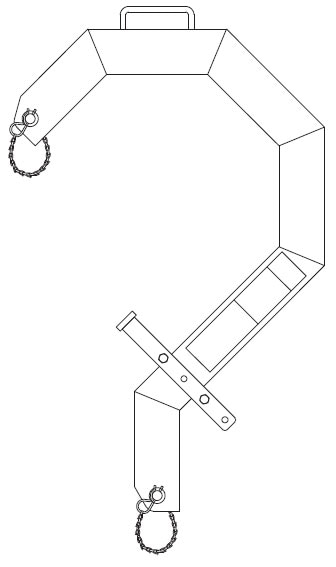

Stand-off Bracket (700583-1) can be used to thrust out from wall in five adjustable positions from 2 1/8 in. to 9 1/8 in. (55 to 233 mm) at 1 3/4 in. (44 mm) increments. Actual thrust out depends on where bracket is clamped to hook. (Note: Confirm with local ordinances before using stand-off brackets.)
Built by Spider in the USA
Specifications
| Part Number | Weight | Point Load/Capacity | Parapet Load/Capacity | Maximum Outreach |
|---|---|---|---|---|
| 700558-12-1 | 30 lb (13.6 kg) | 1,250 lb (567 kg) | 1,500 lb (680.4 kg) | 12 in. (305 mm) |
| 700558-21-1 | 46 lb (20.8 kg) | 1,250 lb (567 kg) | 1,500 lb (680.4 kg) | 21 in (533 mm) |
| 700583-1 | Stand-off Bracket for cornice hooks | |||
