Corner Support Posts
Extends the reach of current outrigger beams by moving the fulcrum point forward into building corners.
Specifications
| Part Number | Weight1 | Load Rating |
|---|---|---|
| 701877-2 | 94 lb (42.6 kg) | Up to 1,500 lb (680.4 kg) |
Key Features
- For use in building corner applications to shorten the reach needed from available beams
- For use with all 4 x 4 SA-1088, 6 x 4 700751-1 and 5 x 5 8-0217-x series beams, 700809-1 & 700819-1 6 in (152 mm) square tube beams

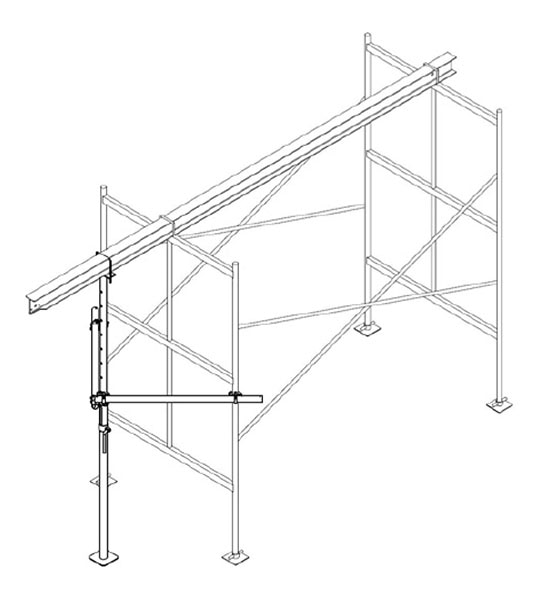

- Attaches to: OBSF Frame A-11393, Rolling Outrigger Gantries 701960-1 and 701960-2
- Enables the use of corner-mounted hoist in the 008812-1 Adjustable Corner Adapter to improve stability, load capacity, and load distribution on angle platforms
- Allows beam fulcrum point to be extended into corners and limited spaces where gantries and frames cannot reach
- Can be used with 2 stacked OBSF frames at maximum height
- Heavy duty steel construction
- Thorough labeling simplifies installation

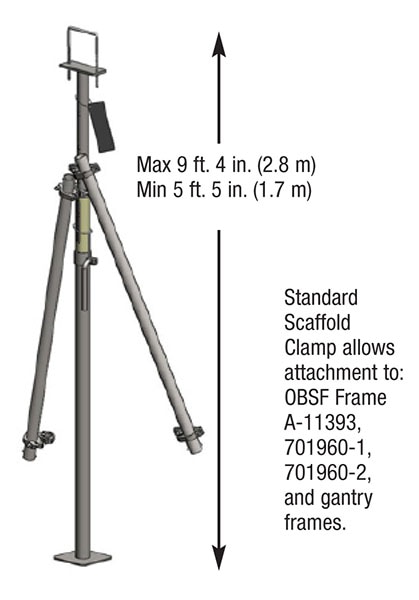

- Height adjustable from 5 ft 5 in. (1.7 m) to 9 ft 4 in. (2.8 m)
- Made by Spider in the USA
