Ring Girder Rollers

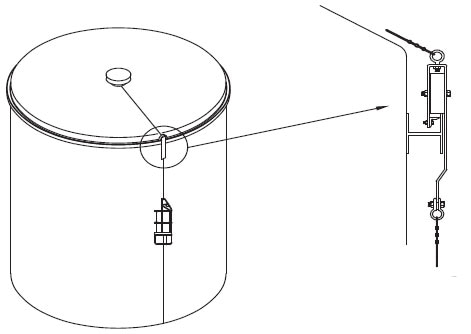

Steel construction with wheel as shown, shackle for tieback and suspended load; For use on floating-top petroleum and chemical storage tanks.

Specifications

Part NumberWeightConstructionDim A*Dim BDim CDim DWheel SizeFrame
4963-0130.5 lb
(13.9 kg)
Steel w/
polyurethane wheel
2 7/8 in
(73 mm)
5 13/16 in
(148 mm)
7 9/16 in
(192 mm)
1 7/16 in
(37 mm)
8 in
(203 mm)
25.3 x 2.5 x 7 in
(643 x 64 x 178 mm)
4963-0225.5 lb
(11.6 kg)
Steel w/
plastic wheel
5 1/8 in
(130 mm)
8 1/16 in
(205 mm)
9 13/16 in
(249 mm)
1 7/16 in
(37 mm)
3 1/2 in
(89 mm)
25.3 x 2.5 x 7 in
(643 x 64 x 178 mm)
4963-0325.5 lb
(11.6 kg)
Steel w/ steel
wheel
5 15/16 in
(151 mm)
8 7/8 in
(225 mm)
10 5/8 in
(270 mm)
1 1/16 in
(27 mm)
2 in
(51 mm)
25.3 x 2.5 x 7 in
(643 x 64 x 178 mm)

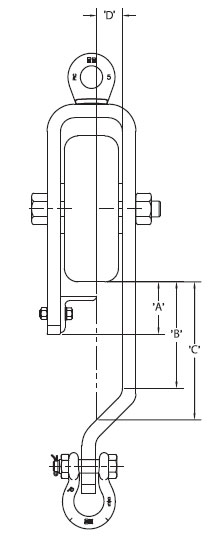

*Dimensions A, B, C & D refer to the image below.

Additional Specifications

  • Load/Capacity: 1,000 lb (453.6 kg)

Key Features

  • Heavy duty steel construction
  • Choices of wheel size and material to meet site needs
  • Built by Spider in the USA
