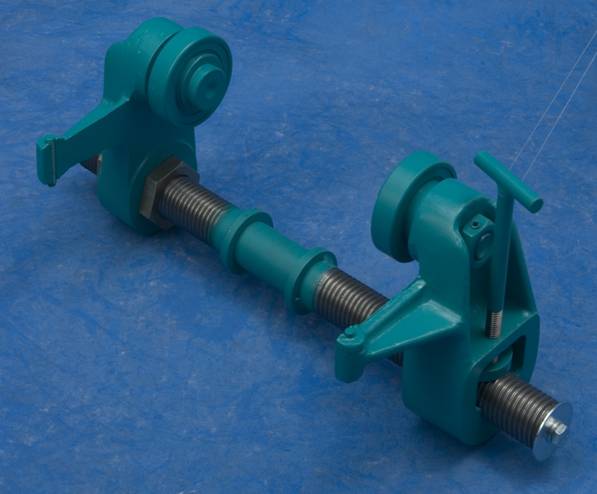

I-Beam Rollers

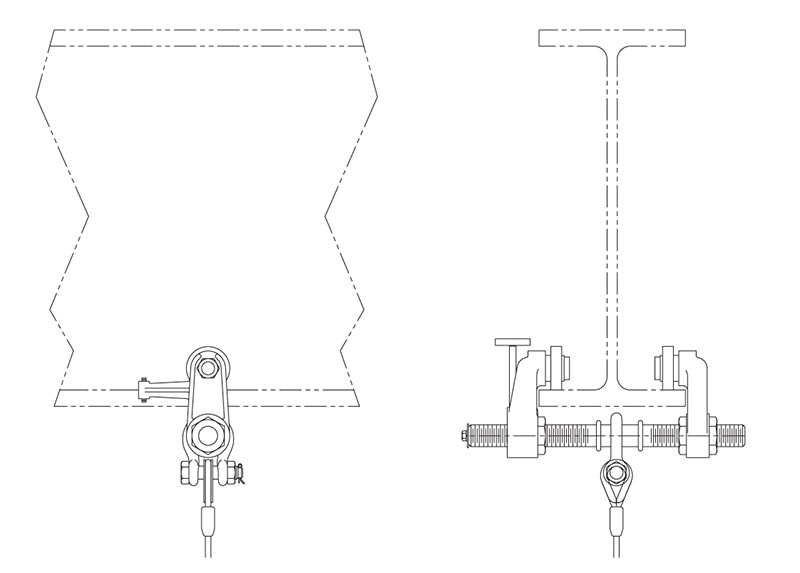

  • Designed to work on a horizontal I-beam
  • SA-1003-1 Thick Flange Adapter Bracket adapts either beam roller to flanges up to 2 1/4 in. (70 mm) thick. Order two for each SA-1003 roller.

Specifications

Part NumberWeightConstructionLoad/CapacityUsed With
SA-100310.9 lb (4.9 kg)Aluminum1,500 lb (680.4 kg)Flanges 4-10 in. (102-254 mm wide)
SA-1003-2213 lb (5.9 kg)Aluminum1,500 lb (680.4 kg)Flanges up to 16 in. wide and 1 3/8 in. (35 mm) thick

Key Features

  • Heavy duty steel construction
  • Time-tested design
  • No tools required for installation
  • Built by Spider in the USA

Notes for Use

  • The beam width must be known in advance, as the flange width is needed to determine the location of the fixed roller.
  • The beam flange should be a consistent width, with no cutouts or notches that would allow the roller to roll off.
  • Block or clamp the end of the beam to keep the roller from rolling off using 702067-1 end stop.
  • The beam must be level, as rollers do not have a brake.
