H-Plate Assemblies

Engineered connection to adjust outrigger beam rigging point and/or backspan to fit jobsite conditions.


Part NumberWeightLoad Rating
701881-14 lb (1.8 kg)1,500 lb (680.4 kg)

Additional Specifications

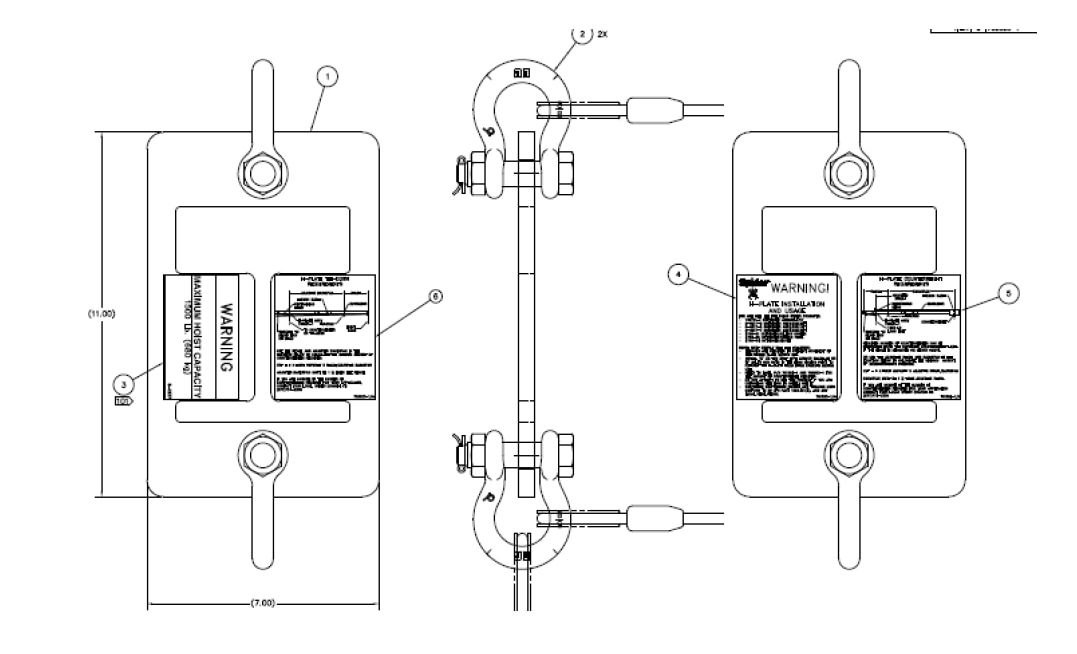

  • Dimensions: 7 x 11 x 1/2 in (178 x 279 x 13 mm)
  • Backspan: Minimum is 1.5 times outreach
  • Outreach: Per Outrigger Beam Character

Key Features

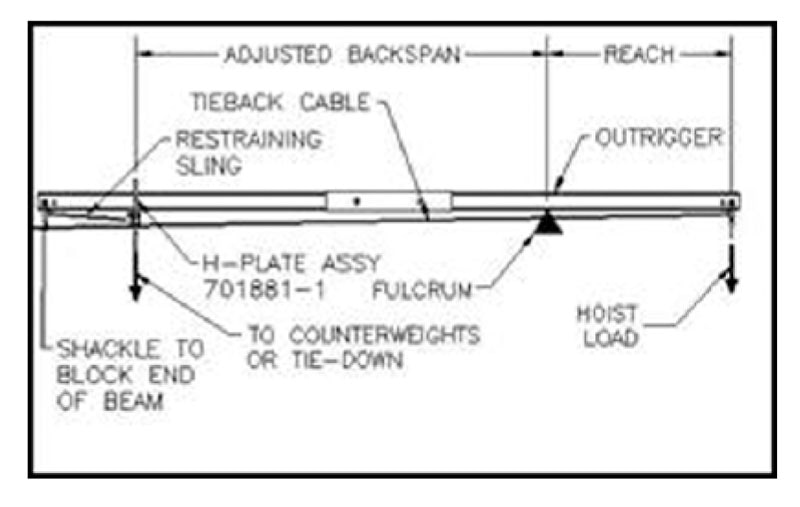

  • Allows user to reduce backspan where space is limited by balconies, walkways or other obstructions
  • Allows user to adjust the backspan to tie the beam directly down to a structural anchor
  • Allows user to reduce the beam outreach to reduce counterweights used
  • Heavy duty steel construction
  • Used with 700751-1 6 x 4, 8-0217-5/6/7 5 x 5 and 4720-01/-02/-34 outrigger beam assemblies
  • No tools required for installation
  • Shackles included
  • Extensive labeling simplifies installation
  • Made by Spider in the USA

Note: Tieback required. Block end of beam with 5/8 in (16 mm) shackle at the usual rigging point.
