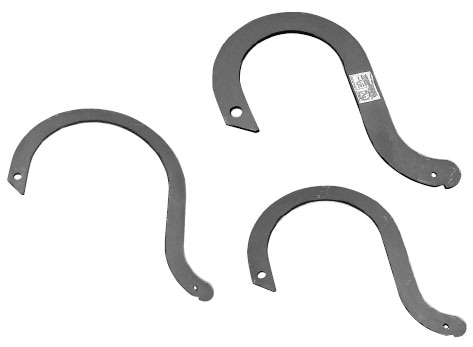

Parapet Hooks
- For parapet loading only
- Steel construction with 13, 20 and 27 in. (330, 508 and 686 mm) throat openings
- Stand-off Bracket (SA-1089) can be used used with all three parapet hooks; allows thrust out from wall in 4 5/8 in. and 7 3/4 in. (117 and 197 mm) adjustment positions; Actual thrust out depends on where bracket is attached to hook. (Note: Confirm with local ordinances before using stand-off brackets.)
- Made in USA
Specifications
| Part Number | Weight | Load/Capacity | Maximum Parapet Thickness |
|---|---|---|---|
| 700770-1 | 35 lb (15.9 kg) | 1,500 lb (680.4 kg) | 12 in, (305 mm) |
| 700772-1 | 44 lb (20 kg) | 1,500 lb (680.4 kg) | 13 to 19 in. (330 to 483 mm) |
| 700773-1 | 50 lb (22.7 kg) | 1,500 lb (680.4 kg) | 20 to 26 in. (508 to 660 mm) |
| SA-1089 | Stand-off Bracket for Parapet Hooks | ||
