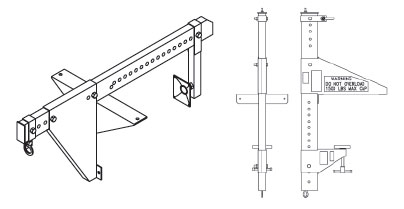

Parapet Clamps
- Designed for maximum versatility with multiple throat openings to fit different parapet widths
- Steel and aluminum construction
- Thorough labeling simplifies installation
- Use beam portion 702606-1 with existing 8-0044 front and rear assemblies to modify parapet clamps in the field, allowing greater fleet flexibility
- Built by Spider in the USA
Specifications
Part Number | Weight | Max Reach* | Max Clamp Opening | Max Load Capacity |
---|---|---|---|---|
9-92 | 45 lb (20.4 kg) | 20 in (508 mm) | 29 in (736 mm) | 1,000 lb (453.6 kg) |
702396-1 | 58 lb (26 kg) | 24 in (610 mm) | 44 in (1,118 mm) | 1,500 lb (680.4 kg) |
8-0044 | 52 lb (23.6 kg) | 24 in (610 mm) | 29 in (736 mm) | 1,500 lb (680.4 kg) |
