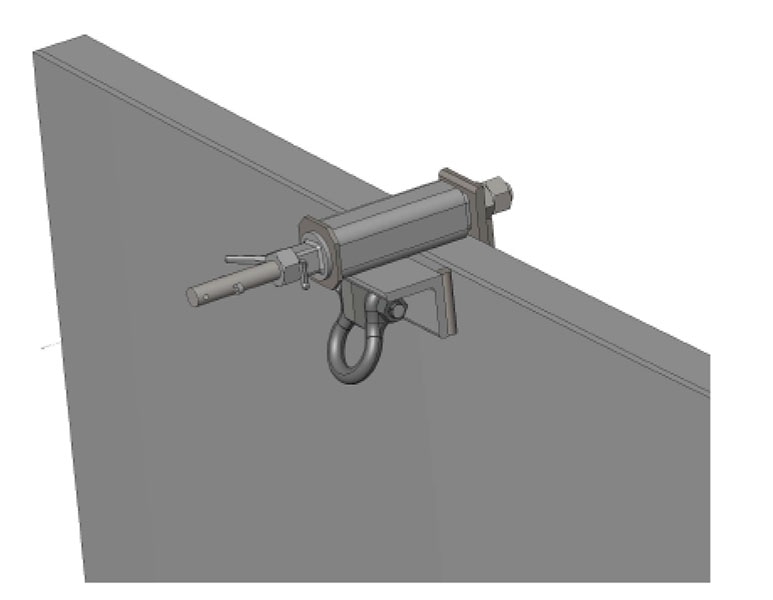

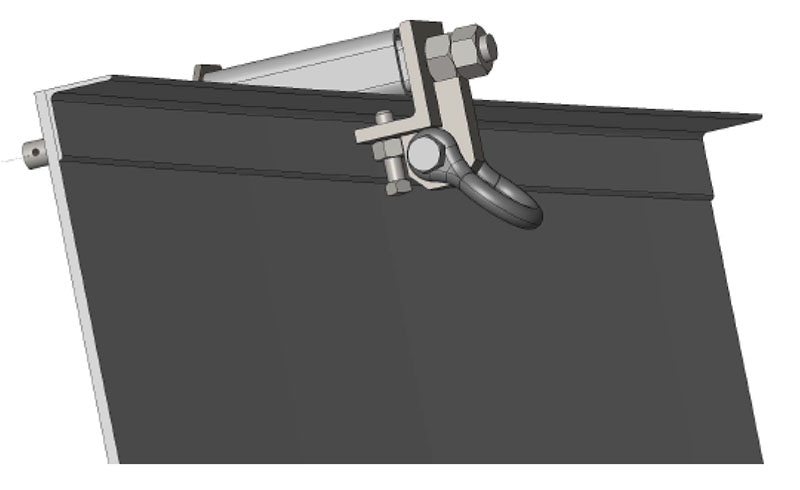

Adjustable Tank Edge Clamps

Designed for equipment tie-back or fall arrest anchorage.

  • Adjustable for different size tank walls
  • Easily mountable
  • Two rigging holes so mounting can occur inside or outside a tank, depending on the wall’s construction
  • Lightweight design
  • Rugged, durable construction
  • Made by Spider in the USA

Note: Reach is not designed for use as an equipment rigging device.

Specifications

Part NumberMaximum CapacityMaximum Personnel Weight for Fall ArrestMaximum Angle ThicknessMaximum Angle Leg Length Plus Tank Wall Thickness
705771-15,000 lb (2,268 kg)310 lb (140.6 kg)0.5 in. (13 mm)3.5 in. (89 mm)
