Vertical Lifelines

Retractable web lanyard with polyester webbing with swivel

  • Affordably priced—Spider’s line of retractables provides a better value than competitive units.
  • Quick-activating braking mechanism—arrests free-fall to less than 2 ft (0.6 m), requires less fall clearance than a shock-absorbing lanyard and provides for a quick, safe rescue
  • Variety of working lengths—lifelines available in 9-, 10-, 11-, 20-, 30-, 50- and 65 ft (2.7-, 3-, 3.4-, 6.1-, 9.1-, 15.2- and 19.8 m)
  • No annual factory re-certification required—lowers cost of ownership and increases productivity (except in Canada where CSA currently requires annual factory re-certification)


Part NumberWeightLengthMaterial

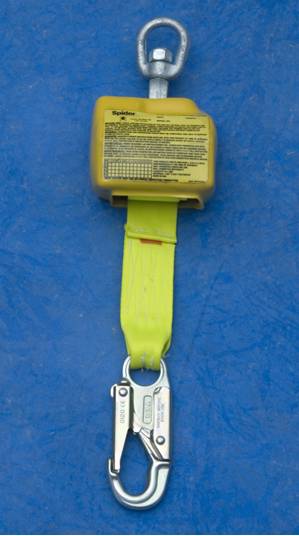

BD-000223.1 lb (1.4 kg)9 ft (2.7 m)Synthetic Webbing
BD-000102.3 lb (1 kg)10 ft (3 m)Synthetic Webbing
BD-000122.6 lb (1.2 kg)11 ft (3.4 m)Synthetic Webbing
BD-000138 lb (3.6 kg)20 ft (6.1 m)Synthetic Webbing

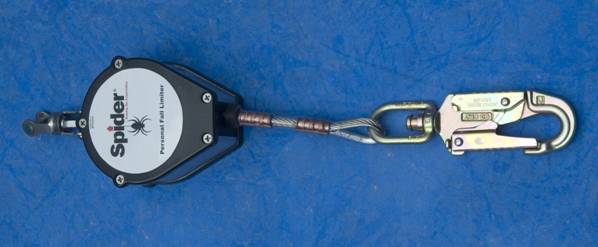

BD-000214.5 lb (2 kg)9 ft (2.7 m)Galvanized Steel Cable
BD-0000311 lb (5 kg)20 ft (6.1 m)Galvanized Steel Cable
BD-0001613 lb (5.9 kg)30 ft (9.1 m)Galvanized Steel Cable
BD-0000118 lb (8.2 kg)50 ft (15.2 m)Galvanized Steel Cable
BD-0000419 lb (8.6 kg)65 ft (19.8 m)Galvanized Steel Cable

Key Features

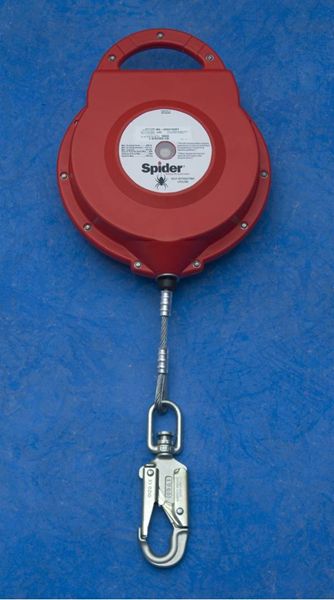

  • Integral handle – Wire rope models include an integral handle, making them easy to carry and install.
  • Snap hook with swivel – prevents the lifeline from twisting and tangling
  • Visual load indicator – indicates the unit must be removed from service
  • Narrow payout port – minimizes debris entering unit
  • Performance meets the standards: OSHA 1926.502, ANSI Z359.1, ANSI A10.14 and CSA Z259.2.2- 98 Type 2
